Precision Angular Contact Ball Bearing

1. Type:718 Series & 719 Series
2. Sizes:718 Series
Inner Diameter: 100-850mm,Outer Diametr: 128-1030mm
Width: 13-82mm, Weight: 0.2-140kg
719 Series
Inner Diameter: 100-750mm, Outer Diametr: 140-950mm
Width: 20-106mm, Weight: 0.8-195kg
3. Feature: There are two series (718 series and 719 series) of CHG light precision angular contact ball bearings; they have the same inside diameter and the outside diameter and width are increased successively.
The single-row angular contact ball bearing can bear a radial load and an axial load in one direction, and it can bear a single axial load in one direction; under the radial load, its axial component load will be caused. Therefore, the single row angular contact ball bearing should be matched with the other bearing to bear the axial load in the opposite direction. So, 2, 3, 4 or even 5 angular contact ball bearings are usually matched together for use, and the angular contact ball bearing has a high limiting speeds.
The contact angles of CHG light series precision angular contact ball bearings are 15° (Code C), 25° (Code AC) and 40° (Code B); for the angular contact ball bearings, the contact angle is greater, the axial load capacity is larger, but the bearing limiting speeds is lower. Therefore, the bearing with the contact angle of 15° is used on the shaft with high speeds and small axial load; on the contrary, the angular contact ball bearings with the contact angle of 25° or 40° should be used.
CHG precision angular contact ball bearings can be divided into 3 series of high-speed angular contact bearings (standard series), ultra high-speed angular contact ceramic ball bearings, and high speed sealed angular contact ball bearings.
4. CHG can also offer angular contact hybrid ceramic ball bearings with wide applications for high-speed precision machine tool spindle and other high-speed precision machinery spindle, in which, the inner and outer rings should be made of high quality bearing steel material, and the rolling elements should be made of silicon nitride ceramics.
Send Inquiry Download

What is a Precision Angular Contact Ball Bearing?

A Precision Angular Contact Ball Bearing is ideal for industries with stringent performance requirements because it is designed to handle high-speed and high-precision applications. An angular contact ball bearing, in contrast to standard ball bearings, is made to carry axial loads only in one direction. They are typically used in pairs or sets to carry both radial and axial loads. Because of their angular contact design, they are able to precisely control the movement of the shaft, reducing friction and increasing reliability.

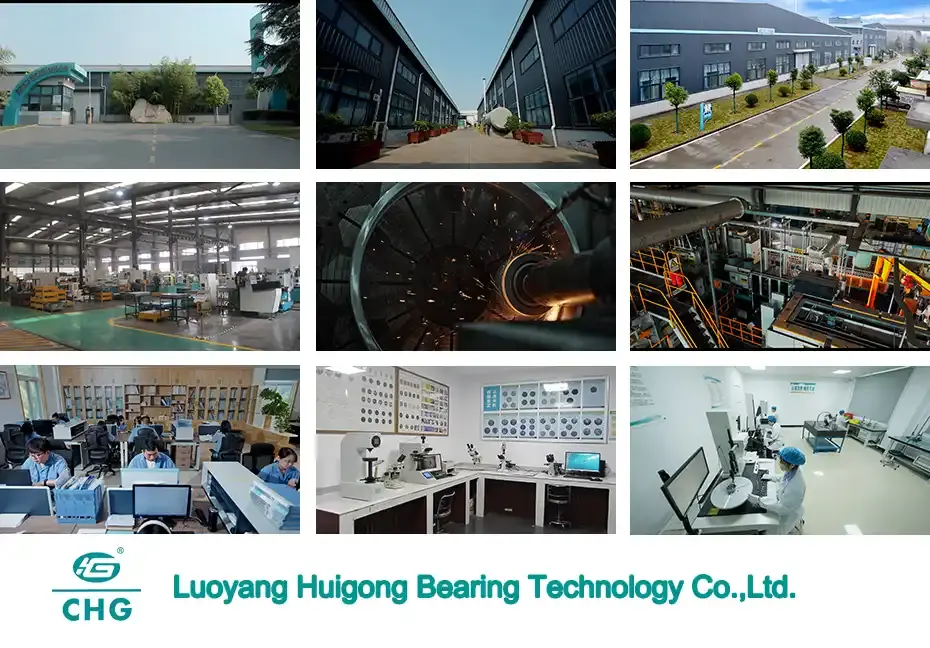

CHG Bearing: Your Expert in Precision Angular Contact Ball Bearings

We are proud to be a leading manufacturer and supplier of Precision Angular Contact Ball Bearing at CHG Bearing. We provide specialized customization and solutions tailored to various working conditions with over 30 years of industry experience. Our 50+ invention patents and strict standards, such as ISO9001 quality management and ISO14001 environmental management certifications, demonstrate our dedication to innovation. We remain a respected brand in the sector thanks to our long-term partnerships with numerous large businesses.

Please contact us at sale@chg-bearing.com for more information or to discuss your requirements.

Technical Specifications

Specification Details
Bore Diameter 10mm - 150mm
Outer Diameter 24mm - 320mm
Width 6mm - 55mm
Material High-grade steel, ceramic options
Contact Angle 15°, 25°, 30°
Speed Rating Up to 10,000 RPM
Load Capacity Up to 5000 N

Precision Angular Contact Ball Bearings and Their Benefits

  • Enhanced Precision: High precision in rotational movement is provided by precision angular contact ball bearing, which is essential for aerospace and medical equipment.
  • High Capacity for Load: These bearings support heavy loads and high-speed operations with minimal friction and were designed to handle both radial and axial loads.
  • Reliability and sturdiness: Even in demanding environments, the robust construction and high-quality materials guarantee long-lasting performance and dependability.
  • Options for Customization: To meet specific requirements, CHG Bearing provides a variety of customization options, including various materials and contact angles.

Applications

  • Aerospace: Used in aircraft engines and satellite systems where precision and reliability are critical.
  • Medical Equipment: Essential for surgical instruments and diagnostic tools requiring high precision.
  • Automation and Robotics: Supports industrial robots and automation systems, contributing to efficiency and performance.
  • Automotive Industry: Used in electric vehicles and high-performance automotive components.
  • Consumer Electronics: Ideal for precision instruments and high-end electronic devices.

Installation Guide

1.Preparation: Check the alignment and clean the mounting surfaces.
2.Placement: Ensure that the bearing is oriented correctly by placing it in the housing or on the shaft.
3.Securing: Use the right tools to fasten the bearing securely without using too much force.
4.Lubrication: To ensure smooth operation, apply the recommended lubricant.

Maintenance and Care

  • Regular checkups: Make sure the lubrication levels are adequate and look for signs of wear or damage.
  • Cleaning: Clean the bearing surface with a soft cloth and avoid harsh chemicals.
  • Lubrication: For intervals and the kind of lubricant to use, follow the manufacturer's instructions.

FAQ

Q1. What is the difference between angular contact ball bearings and radial ball bearings?
Angular contact ball bearings are designed to handle axial loads in one direction and are often used in pairs to support both radial and axial loads. Radial ball bearings, on the other hand, are primarily designed to handle radial loads.

Q2. Can it be used in high-temperature environments?
Yes, it can be designed with special materials and lubricants to withstand high-temperature environments. Consult with us for specific requirements.

Q3. How often should I replace Precision Angular Contact Ball Bearings?
Replacement frequency depends on the application and operating conditions. Regular inspection and maintenance can help determine when a replacement is necessary.

Customer Reviews

1.John M. - Aerospace Engineer:"The precision and reliability of CHG's angular contact ball bearings have significantly improved our system's performance. Highly recommended for high-precision applications."

2.Sarah L. - Medical Equipment Manufacturer:"Excellent quality and fast delivery. CHG Bearing provided the perfect solution for our diagnostic equipment. Their customer support is top-notch."

3.David K. - Robotics Engineer:"We appreciate the customization options and quick turnaround time. CHG Bearing's products have proven to be highly durable and efficient in our robotics applications."

Contact Us

If you have any needs in precision angular contact ball bearing,please contact us at sale@chg-bearing.com or fill out our contact form for more information and a quote.

Dimensions Basic Load Rating Part number Weight Installation Size Limiting Speed
mm kN kg mm r/min
d D B Tmin hmln Cr Cor da Da Ta ral Grease Oil
100 128 13 1 0.3 21.2 27.5 71820 0.2 104.6 120.4 1 1 8500 13000
110 140 16 1 0.3 31.9 40.5 71822 0.51 114.6 135.4 1 1 8000 13000
120 150 16 1 0.3 33.2 45 71824 0.55 124.8 145.4 1 1 7500 12000
130 165 18 1.1 0.6 39 53 71826 0.7 136 159   1 7000 11000
140 175 18 1.1 0.6 44.9 62 71828 0.8 146 169 1 1 6300 10000
150 190 20 1.1 0.6 53.5 74.5 71830 1.32 156 184 1 1 6300 9500
160 200 20 1.1 0.6 54 78 71832 1.25 166 194 1 1 5600 8500
170 215 22 1.1 0.6 80 110 71834 2 175 210 1 1 5600 8500



Dimensions Basic Load Rating Part number Weight Installation Size Limiting Speed
mm kN kg mm r/min
d D B Tmin hmln Cr Cor da Da Ta ral Grease Oil
200 250 24 1.5 1 90 130 71840 2.5 208.5 241.5 1.5 1 4300 6000
220 270 24 1.5 1 151 263 71844 2.5 228.5 261.5 1.5 1 3800 5600
240 300 28 2 1 128 175 71848 4.1 250 290 2 1 3200 4800
260 320 28 2 1 127 190 71852 4.85 270 310 2 1 1400 1900
280 350 33 2 1 140 216 71856 7.2 290 340 2 1 1200 1700
320 400 38 2.1 1.1 190 290 71864 10 332 388 2 1 800 1000
340 440 38 2.1 1.1 219 345 71872 11.1 372 428 2 1
360 480 46 2.1 1.1 261.9 450 71876 18 392 468 2 1 1700 2400
380 500 46 2.1 1.1 292 501 71880 19.5 412 488 2 1



Dimensions Basic Load Rating Part number Weight Installation Size Limiting Speed
mm kN kg mm r/min
d D B Tmin hmin Cr Cor da Da Ta Ta1 Grease Oil
420 520 46 2.1 1.1 294 513 71884 20.4 432 508 2 1 750 1000
440 540 46 2.1 1.1 301 540 71888 21.1 452 528 2 1 750 1000
460 580 56 3 3 334 689 71892 34.5 474 566 2.5 1 850 1000
480 600 56 3 1.1 415 820 71896 35.5 494 686 2.5 1 850 1200
500 620 56 3 1.1 351 765 718/500 38 514 606 2.5 1 670 900
530 650 56 3 1.1 369 837 718/530 39.5 544 636 2.5 1 1100 1600
560 680 56 3 1.1 341 837 718/560 41.5 574 666 2.5 1 600 800
600 730 60 3 1.1 421 1044 718/600 47 614 766 2.5 1 560 750
630 780 69 4 1.5 518 1160 718/630 69.7 648 715 3.1 1.5
670 820 69 4 1.5 498 1161 718/670 77 688 802 3 1.5 850 1200
710 870 74 4 1.5 546 1467 718/710 93.5 725 855 3 1 800 1100
750 920 78 5 2 585 1620 718/750 110 768 902 4 2 400 530
850 1030 82 5 2 620 1674 718/850 140 868 1012 4 2 340 450

Note:

1.Rate and speed in the catalogue is changed with the change of contact angle ,please consult CHG technical department.

2.Our company can also produce diameter series 7 bearings(Super thin-section),please consult CHG technical department.

Dimensions Basic Load Rating Part number Weight Installation Size Limiting Speed
mm kN kg mm r/min
d D B Tmin hmin Cr Cor da Da Ta ra1 Grease Oil
100 140 20 1.1 0.6 60.6 65.5 71920 0.8 106 134 1 1 8500 14000
110 150 20 1.1 0.6 62.4 72 71922 0.86 116 144 1 1 8000 13000
120 150 20 1.1 0.6 24.7 25.5 71924 1.15 116 144 1 1 10000 15000
130 180 24 1.5 0.6 92.3 108 71926 1.55 137 173 1.5 1.5 7000 11000
140 190 24 1.5 0.6 95.6 116 71928 1.65 147 183 1.5 1.5 6700 10000
150 210 28 2 1 90 120 71930 3 160 200 2 1 6300 9500
160 220 28 2 1 109 129 71932 3 170 210 2 1 6000 9000
170 230 28 2 1 110 140 71934 3.3 179 221 2 2 5600 8500
190 260 33 2 1 139 177 71938 4.45 199 255 2 2 5000 7500



Dimensions Basic Load Rating Part number Weight Installation Size Limiting Speed
mm kN kg mm r/min
d D B Tmin hmln Cr Cor da Da Ta ral Grease Oil
200 280 38 2.1 1.1 150 210 71940 7.1 212 268 2 1 4300 6000
220 300 38 2.1 1.1 200 250 71944 7.2 232 288 2 1 3800 5600
240 320 38 2.1 1.1 203 285 71948 8.37 252 308 2 1 3200 4800
260 360 46 2.1 1.1 242 345 71952 13.5 272 348 2 1 1300 1800
280 380 46 2.1 1.1 226 337 71956 15 292 368 2 1 1100 1600
320 440 56 3 1.1 350 550 71964 25.5 334 426 2.5 1 800 1000
340 460 56 3 1.1 292 510 71968 27.5 354 446 2.5 1 800 1000
360 480 56 3 1.1 350 600 71972 29         800 1000
380 520 65 4 1.5 369 661.5 71976 40.5 395 505 3 1 850 1200
400 540 65 4 1.5 380.7 702 71980 42 415 525 3 1 800 1100



Dimensions Basic Load Rating Part number Weight Installation Size Limiting Speed
mm kN kg mm r/min
d D B Tmin hmin Cr Cor da Da Ta Ta1 Grease Oil
420 560 65 4 1.5 327 603 71984 44.5 435 545 3 1 700 950
440 600 74 4 3 456.3 936 71988 61 455 585 3 1 750 1000
460 620 74 4 1.5 456 936 71992 58 475 605 3 1 750 900
530 670 78 5 2 498 1098 719/530 78 518 652 4 1 630 850
560 710 82 5 2 556 1206 719/560 92 558 692 4 1 1000 1500
600 750 85 5 2 533 1161 719/600 105 578 732 4 2 560 750
630 800 90 5 2 644 1557 719/630 125 618 782 4 2 900 1300
750 950 106 6 3 767 1980 719/750 195 733 927 5 2 800 1100

Note:

1.Rate and speed in the catalogue is changed with the change of contact angle,please consult CHG technical department.

2.Our company can also produce diameter series 7 bearings(Super thin-section),please consult CHG technical department.
