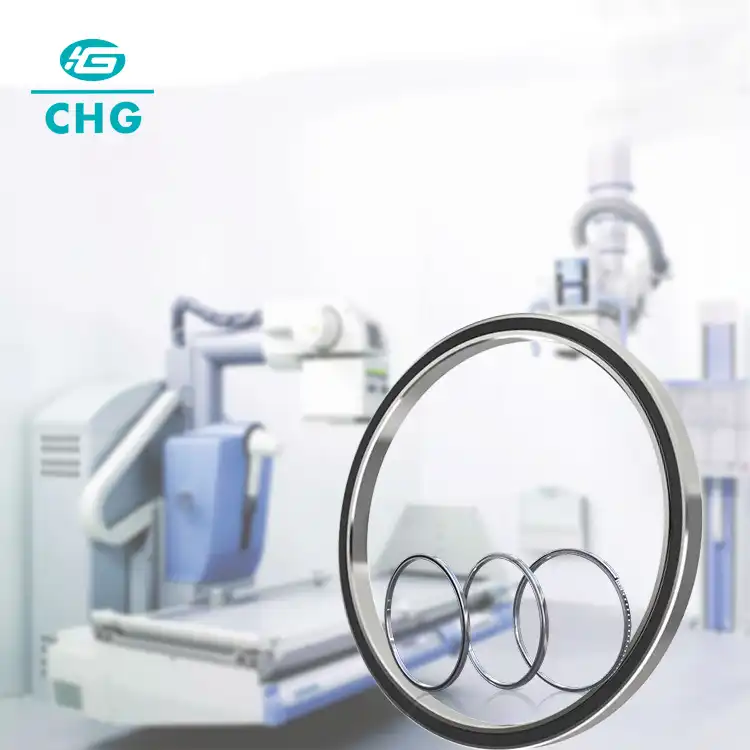

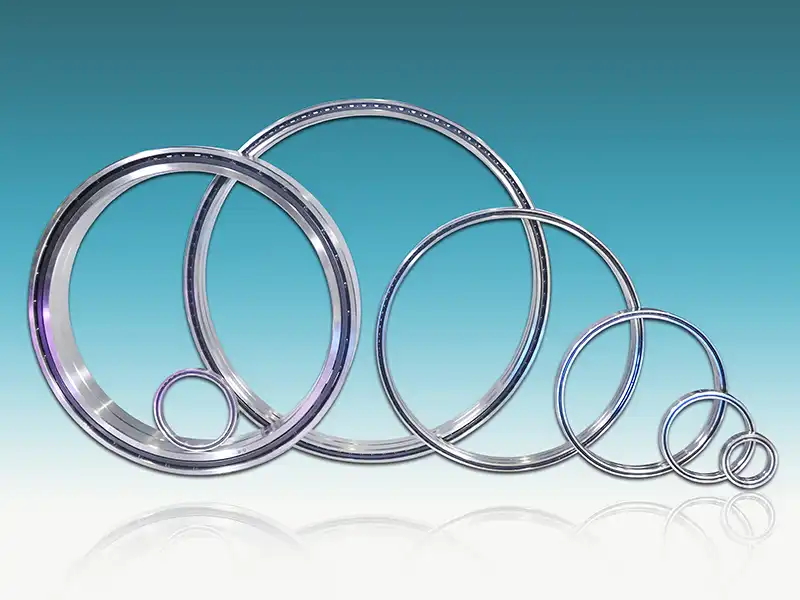

Metric Thin Section Bearings

1. Features: CHG Bearing can do MM metric series thin section bearings including 3 types: Radial contact (type C), Angular contact (type A) and Four-point contact (type X)
2. Type:
8mm Series: Inner Diameter from 25 mm to 360mm
13mm Series: Inner Diameter from 25 mm to 360mm
20mm Series: Inner Diameter from 25 mm to 360mm
3. The Accuracy class: P0-P6-P5-P4-P2 Avaliable
4. In addition, we also can customize non standard bearings (special size and special type) according to customer needs
5. Material:GCr15/9Cr18 stainless steel

Send Inquiry Download

Metric Thin Section Bearings: High Precision for Advanced Applications

The comprehensive guide to Metric Thin Section Bearings is now available! Knowing the advantages and features of these bearings can help you make informed decisions whether you work in automotive, aerospace, medical equipment, automation, robotics, consumer electronics, or automation and robotics. Let's examine the significance of the product for your high-precision requirements in greater detail.

What Are Metric Thin Section Bearings?

In a variety of industries, it is designed to handle lightweight, high-precision applications. These bearings can fit into tight spaces while maintaining high performance due to their thin cross-sections. Due to their exceptional load capacity, durability, and accuracy, they are ideal for applications where space and weight are of the utmost importance.

Why Choose CHG Bearing for Metric Thin Section Bearings?

We are proud to be a leading manufacturer and supplier of Metric Thin Section Bearings at CHG Bearing. Why do we stand out?

Solutions and Customization: We ensure that our bearings meet your specific requirements by offering custom solutions for various working conditions.
Expertise and Knowledge: We have been in business for more than 30 years, so we have a lot of experience and have worked with many big companies.
Conceptual Innovation: Our company adheres to stringent quality standards, including ISO9001 and ISO14001 certifications, and has more than 50 invention patents.

Technical Specifications

Here are the key technical specifications of our products:

Specification	Details
Outer Diameter	Customizable based on the application
Inner Diameter	Customizable based on the application
Width	Thin section design for compact spaces
Material	High-grade steel or ceramic
Load Capacity	High, suitable for precision tasks
Temperature Range	-40°C to +120°C

Benefits of Metric Thin Section Bearings

Convenient Design: Ideal for applications requiring limited space.
High Accuracy: Ensures high-tech machinery's accuracy and dependability.
Durability: Crafted to withstand the most demanding operating conditions.
Gaining Weight: Ideal for applications requiring significant weight reduction.

Applications

Different industries use Metric Thin Section Bearings, such as:

Aerospace: For components in satellites and aircraft, where precision and dependability are essential.
Medical supplies: In diagnostic and surgical instruments that require high accuracy.
Robots and automation: Enhancing industrial robot and automation system performance.
The auto industry: For electric vehicles with high performance and automotive components.
Electronics for Consumers: In-motion systems for high-end electronic devices and precision instruments.

Installation Guide

1. Preparation: Make sure there are no messes in the installation area.

2. Alignment: To avoid misalignment, align the bearing and housing correctly.

3. Mounting: Utilizing the appropriate tools, carefully insert the bearing into the housing to prevent damage.

4. Securing: Make sure the bearing is stable and in the right position by fixing it in place.

Maintenance and Care

Regular checkups: Every so often, look for signs of wear or damage.
Lubrication: To ensure smooth operation, apply the recommended lubricant.
Cleaning: Make sure there are no contaminants on the bearing.
Storage: Bearings should be kept dry and free of dust.

FAQ

Q1: What industries benefit most from Metric Thin Section Bearings? A: Industries like aerospace, medical, automotive, and consumer electronics benefit significantly from their precision and compact design.

Q2: How can I request a custom solution? A: Contact us directly at sale@chg-bearing.com with your specific requirements.

Q3: What is the typical lead time for custom bearings? A: Lead times vary based on customization and order volume. Contact us for precise details.

Customer Reviews

John D., Aerospace Engineer: “CHG Bearing’s bearings exceeded our expectations in terms of precision and durability. Highly recommended!”
Linda K., Robotics Specialist: “The custom solutions provided by CHG Bearing were perfect for our application. Their expertise is unmatched.”

Contact Us

Are you ready to make use of Metric Thin Section Bearings in your precision applications? Contact us right away to talk about your requirements and see what we have to offer. Send us an email at sale@chg-bearing.com. Please do not hesitate to contact us with any additional inquiries or inquiries.

8mm Series - Angular Contact Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic Load		Static Load		Weight
	d	D	B	Radial	Axial	Radial	Axial	Weight
	(mm)	(mm)	(mm)	(N)	(N)	(N)	(N)	(kg)
K02508AR0	25	41	8	2667	5502	3648	10523	0.06
K05008AR0	50	66	8	3599	8032	6433	18574	0.08
K06008AR0	60	76	8	4001	9071	7718	22291	0.09
K07008AR0	70	86	8	4315	9895	8787	25380	0.1
K08008AR0	80	96	8	4609	10689	9865	28469	0.12
K09008AR0	90	106	8	4952	11591	11150	32185	0.13
K10008AR0	100	116	8	5227	12327	12219	35284	0.14
K11008AR0	110	126	8	5502	13033	13298	38383	0.15
K12008AR0	120	136	8	5757	13729	14367	41472	0.16
K13008AR0	130	146	8	6061	14533	15651	45189	0.17
K14008AR0	140	156	8	6306	15191	16730	48278	0.18
K15008AR0	150	166	8	6541	15838	17799	51377	0.2
K16008AR0	160	176	8	6825	16583	19084	55094	0.2
K17008AR0	170	186	8	7061	17201	20153	58183	0.21
K18008AR0	180	196	8	7277	17809	21231	61282	0.22
K19008AR0	190	206	8	7541	18525	22516	64998	0.23
K20008AR0	200	216	8	7757	19103	23585	68097	0.23
K25008AR0	250	266	8	8797	22006	29165	84190	0.28
K30008AR0	300	316	8	9797	24830	34951	100901	0.33
K32008AR0	320	336	8	10189	25939	37314	107706	0.36
K34008AR0	340	356	8	10523	26919	39452	113894	0.38
K36008AR0	360	376	8	10885	27988	41816	120710	0.4

8mm Series - Deep Groove Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic		Weight
	d	D	B	Radial	Radial	Weight
	(mm)	(mm)	(mm)	(N)	(N)	(kg)
K02508CP0	25	41	8	2501	2971	0.06
K05008CP0	50	66	8	3432	5452	0.08
K06008CP0	60	76	8	3766	6433	0.09
K07008CP0	70	86	8	4089	7433	0.1
K08008CP0	80	96	8	4393	8424	0.11
K09008CP0	90	106	8	4688	9405	0.13
K10008CP0	100	116	8	4972	10405	0.14
K11008CP0	110	126	8	5237	11395	0.15
K12008CP0	120	136	8	5502	12376	0.16
K13008CP0	130	146	8	5766	13376	0.17
K14008CP0	140	156	8	6011	14367	0.18
K15008CP0	150	166	8	6257	15347	0.2
K16008CP0	160	176	8	6492	16338	0.2
K17008CP0	170	186	8	6727	17328	0.2
K18008CP0	180	196	8	6953	18319	0.21
K19008CP0	190	206	8	7110	19064	0.21
K20008CP0	200	216	8	7335	20055	0.22
K25008CP0	250	266	8	8365	25007	0.28
K30008CP0	300	316	8	9307	29959	0.35
K32008CP0	320	336	8	9660	31940	0.39
K34008CP0	340	356	8	9660	31940	0.39
K36008CP0	360	376	8	10297	35657	0.46

8mm Series - Four Point Contact Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic			Static			Weight
	d	D	B	Radial	Thrust	Moment	Radial	Thrust	Moment	Weight
	(mm)	(mm)	(mm)	(N)	(N)	(N-m)	(N)	(N)	(N-m)	(kg)
K02508XP0	25	41	8	3246	4599	40	3275	7433	49	0.06
K05008XP0	50	66	8	4511	6531	98	5443	13621	158	0.08
K06008XP0	60	76	8	4962	7306	127	6433	16093	219	0.09
K07008XP0	70	86	8	5384	8032	158	7424	18574	290	0.1
K08008XP0	80	96	8	5796	8728	191	8424	21045	370	0.11
K09008XP0	90	106	8	6188	9405	228	9405	23526	461	0.13
K10008XP0	100	116	8	6570	10052	266	10395	25997	562	0.14
K11008XP0	110	126	8	6933	10689	307	11395	28469	672	0.15
K12008XP0	120	136	8	7286	11297	350	12376	30950	792	0.16
K13008XP0	130	146	8	7630	11886	395	13366	33431	923	0.18
K14008XP0	140	156	8	7963	12464	442	14367	35902	1063	0.19
K15008XP0	150	166	8	8296	13033	492	15347	38383	1213	0.2
K16008XP0	160	176	8	8610	13592	543	16338	40855	1373	0.2
K17008XP0	170	186	8	8924	14131	596	17328	43326	1543	0.2
K18008XP0	180	196	8	9228	14661	651	18319	45807	1722	0.21
K19008XP0	190	206	8	9444	15063	701	19064	47660	1888	0.21
K20008XP0	200	216	8	9728	15573	759	20055	50141	2086	0.22
K25008XP0	250	266	8	11111	18044	1075	25007	62517	3226	0.28
K30008XP0	300	316	8	12366	20359	1429	29959	74903	4614	0.35
K32008XP0	320	336	8	12847	21241	1580	31940	79856	5238	0.39
K34008XP0	340	356	8	13239	22114	1728	33921	84808	5859	0.42
K36008XP0	360	376	8	13690	22849	1890	35657	89133	6561	0.46

13mm Series - Angular Contact Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic Load		Static Load		Weight
	d	D	B	Radial	Axial	Radial	Axial	Weight
	(mm)	(mm)	(mm)	(N)	(N)	(N)	(N)	(kg)
K02513AR0	25	51	13	5433	10542	6041	17346	0.13
K05013AR0	50	76	13	7110	15171	10434	30106	0.2
K06013AR0	60	86	13	7669	16730	12082	34863	0.22
K07013AR0	70	96	13	8434	18691	14278	41198	0.25
K08013AR0	80	106	13	8953	20104	15916	45954	0.28
K09013AR0	90	116	13	9454	21477	17564	50710	0.31
K10013AR0	100	126	13	9934	22791	19211	55466	0.34
K11013AR0	110	136	13	10405	24075	20859	60223	0.37
K12013AR0	120	146	13	10866	25331	22506	64969	0.39
K13013AR0	130	156	13	11484	26949	24703	71314	0.42
K14013AR0	140	166	13	11915	28135	26350	76070	0.45
K15013AR0	150	176	13	12337	29292	27998	80817	0.48
K16013AR0	160	186	13	12758	30440	29646	85573	0.51
K17013AR0	170	196	13	13161	31548	31293	90239	0.54
K18013AR0	180	206	13	13553	32646	32941	95085	0.56
K19013AR0	190	216	13	13945	33725	34588	99842	0.59
K20013AR0	200	226	13	14475	35137	36775	106177	0.62
K25013AR0	250	276	13	16269	40207	45013	129948	0.76
K30013AR0	300	326	13	18044	45287	53799	155308	0.9
K32013AR0	320	346	13	18672	47111	57094	164811	0.96
K34013AR0	340	366	13	19398	49200	60929	175902	1.02
K36013AR0	360	386	13	19986	50955	64234	185414	1.07

13mm Series - Deep Groove Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic		Weight
	d	D	B	Radial	Radial	Weight
	(mm)	(mm)	(mm)	(N)	(N)	(kg)
K02513CP0	25	51	13	5247	5070	0.11
K05013CP0	50	76	13	6835	8875	0.18
K06013CP0	60	86	13	7600	10778	0.21
K07013CP0	70	96	13	8032	12043	0.24
K08013CP0	80	106	13	8453	13317	0.26
K09013CP0	90	116	13	9130	15210	0.29
K10013CP0	100	126	13	9522	16485	0.32
K11013CP0	110	136	13	10150	18387	0.35
K12013CP0	120	146	13	10523	19653	0.38
K13013CP0	130	156	13	10885	20918	0.41
K14013CP0	140	166	13	11464	22820	0.44
K15013CP0	150	176	13	11807	24085	0.46
K16013CP0	160	186	13	12150	25360	0.49
K17013CP0	170	196	13	12690	27262	0.52
K18013CP0	180	206	13	13013	28528	0.55
K19013CP0	190	216	13	13337	29793	0.58
K20013CP0	200	226	13	13837	31695	0.61
K25013CP0	250	276	13	15671	39305	0.75
K30013CP0	300	326	13	17201	46278	0.89
K32013CP0	320	346	13	17878	49445	0.95
K34013CP0	340	366	13	18525	52613	1.01
K36013CP0	360	386	13	19162	55780	1.06

13mm Series - Four Point Contact Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic			Static			Weight
	d	D	B	Radial	Thrust	Moment	Radial	Thrust	Moment	Weight
	(mm)	(mm)	(mm)	(N)	(N)	(N-m)	(N)	(N)	(N-m)	(kg)
K02513XP0	25	51	13	6757	8522	96	6825	12680	96	96
K05013XP0	50	76	13	8924	12023	211	9012	22192	280	0.2
K06013XP0	60	86	13	9944	14082	272	10778	26939	393	0.23
K07013XP0	70	96	13	10532	15171	328	12043	30106	500	0.26
K08013XP0	80	106	13	11111	16210	388	13317	33274	619	0.28
K09013XP0	90	116	13	12003	17730	464	15210	38030	784	0.31
K10013XP0	100	126	13	12543	18691	532	16485	41198	931	0.34
K11013XP0	110	136	13	13376	20104	617	18387	45954	1131	0.37
K12013XP0	120	146	13	13876	21025	693	19672	49131	1307	0.4
K13013XP0	130	156	13	14377	21918	771	20918	52299	1496	0.43
K14013XP0	140	166	13	15141	23222	869	22820	57045	1746	0.46
K15013XP0	150	176	13	15612	24075	954	24085	60223	1963	0.48
K16013XP0	160	186	13	16073	24919	1043	25360	63390	2193	0.51
K17013XP0	170	196	13	16779	26145	1152	27262	68146	2494	0.54
K18013XP0	180	206	13	17220	26949	1247	28528	71314	2753	0.57
K19013XP0	190	216	13	17652	27743	1344	29793	74482	3024	0.6
K20013XP0	200	226	13	18319	28910	1464	31695	79238	3375	0.63
K25013XP0	250	276	13	20780	33372	2050	39305	98253	5168	0.77
K30013XP0	300	326	13	22820	37206	2680	46278	115679	7242	0.91
K32013XP0	320	346	13	23722	38893	2963	49445	123613	8232	0.97
K34013XP0	340	366	13	24595	40531	3257	52613	131527	9286	1.02
K36013XP0	360	386	13	25438	42149	3560	55780	139451	10403	1.08

20mm Series - Angular Contact Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic Load		Static Load		Weight
	d	D	B	Radial	Axial	Radial	Axial	Weight
	(mm)	(mm)	(mm)	(N)	(N)	(N)	(N)	(kg)
K02520AR0	25	65	20	11327	20741	11121	32087	0.31
K05020AR0	50	90	20	14318	29155	18525	53485	0.49
K06020AR0	60	100	20	15171	31685	20996	60615	0.56
K07020AR0	70	110	20	16014	34127	23467	67744	0.62
K08020AR0	80	120	20	16838	36481	25939	74874	0.69
K09020AR0	90	130	20	18152	39884	29646	85573	0.77
K10020AR0	100	140	20	18917	42071	32117	92702	0.84
K11020AR0	110	150	20	19662	44199	34588	99842	0.91
K12020AR0	120	160	20	20398	46278	37050	106971	0.97
K13020AR0	130	170	20	21124	48317	39521	114100	1.04
K14020AR0	140	180	20	21830	50308	41992	121230	1.11
K15020AR0	150	190	20	22938	53221	45699	131929	1.19
K16020AR0	160	200	20	23605	55123	48170	139058	1.26
K17020AR0	170	210	20	24262	56986	50465	146188	1.32
K18020AR0	180	220	20	24909	58830	53113	153317	1.39
K19020AR0	190	230	20	25546	60635	55584	160447	1.46
K20020AR0	200	240	20	26537	63302	59281	171146	1.54
K25020AR0	250	290	20	29822	72648	72873	210372	1.89
K30020AR0	300	340	20	32529	80630	85230	246029	2.23
K32020AR0	320	360	20	33872	84484	91408	263858	2.37
K34020AR0	340	380	20	34872	87505	96341	278117	2.51
K36020AR0	360	400	20	36138	91202	102519	295945	2.66

20mm Series - Deep Groove Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic		Weight
	d	D	B	Radial	Radial	Weight
	(mm)	(mm)	(mm)	(N)	(N)	(kg)
K02520CP0	25	65	20	11552	9983	0.34
K05020CP0	50	90	20	13827	15691	0.51
K06020CP0	60	100	20	14239	17113	0.58
K07020CP0	70	110	20	15426	19966	0.65
K08020CP0	80	120	20	15857	21388	0.72
K09020CP0	90	130	20	16966	24252	0.8
K10020CP0	100	140	20	17387	25674	0.86
K11020CP0	110	150	20	18437	28528	0.94
K12020CP0	120	160	20	19437	31381	1.01
K13020CP0	130	170	20	19839	32803	1.08
K14020CP0	140	180	20	20800	35657	1.15
K15020CP0	150	190	20	21192	37079	1.2
K16020CP0	160	200	20	22104	39933	1.3
K17020CP0	170	210	20	22487	42786	1.4
K18020CP0	180	220	20	23369	44208	1.5
K19020CP0	190	230	20	24222	47072	1.5
K20020CP0	200	240	20	24585	48494	1.6
K25020CP0	250	290	20	27665	59899	2.1
K30020CP0	300	340	20	30508	71314	2.3
K32020CP0	320	360	20	31509	75590	2.42
K34020CP0	340	380	20	32480	79865	2.54
K36020CP0	360	400	20	33421	84151	2.7

20mm Series - Four Point Contact Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic			Static			Weight
	d	D	B	Radial	Thrust	Moment	Radial	Thrust	Moment	Weight
	(mm)	(mm)	(mm)	(N)	(N)	(N-m)	(N)	(N)	(N-m)	(kg)
K02520XP0	25	65	20	14739	17544	225	14886	24958	225	0.34
K05020XP0	50	90	20	17917	23712	470	18093	39217	549	0.52
K06020XP0	60	100	20	18505	25215	556	18691	42786	685	0.59
K07020XP0	70	110	20	20104	27841	679	20310	49916	899	0.66
K08020XP0	80	120	20	20702	29155	777	21388	53485	1070	0.73
K09020XP0	90	130	20	22192	31685	916	24252	60615	1334	0.08
K10020XP0	100	140	20	22781	32921	1026	25674	64185	1540	0.87
K11020XP0	110	150	20	24183	35314	1179	28528	71314	1854	0.94
K12020XP0	120	160	20	25527	37628	1341	31381	78443	2196	1.01
K13020XP0	130	170	20	26086	38766	1468	32803	82013	2460	1.07
K14020XP0	140	180	20	27370	40982	1643	35657	89142	2852	1.15
K15020XP0	150	190	20	27900	42071	1779	37079	92702	3152	1.22
K16020XP0	160	200	20	29126	44199	1967	39933	99832	3594	1.3
K17020XP0	170	210	20	29646	46278	2113	42786	106961	3929	1.37
K18020XP0	180	220	20	30822	47297	2312	44208	110531	4421	1.44
K19020XP0	190	230	20	31970	49318	2519	47072	117670	4942	1.51
K20020XP0	200	240	20	32450	50308	2678	48494	121230	5334	1.57
K25020XP0	250	290	20	36589	57918	3706	59899	149757	8087	2.1
K30020XP0	300	340	20	40394	65048	4849	71314	178275	11410	2.3
K32020XP0	320	360	20	41727	67636	5323	75590	188974	12850	2.44
K34020XP0	340	380	20	43032	70157	5812	79865	199673	14376	2.58
K36020XP0	360	400	20	44306	72648	6316	84151	210372	15988	2.73
