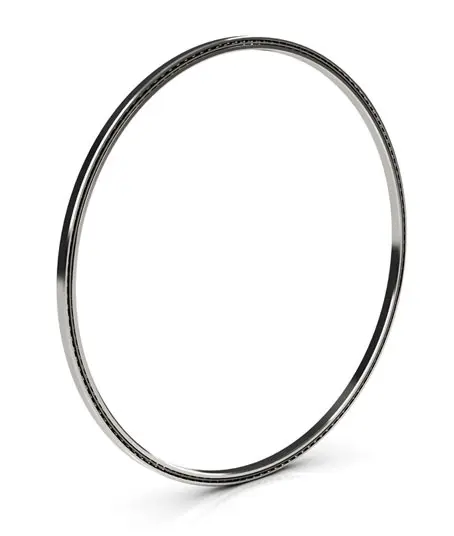

Type X Thin Section Bearing

1. Feature: Type X-Thin section four point contact ball bearings are unique in that their extremely thin cross section enables them to provide great size and weight reductions for light to medium duty applications with slow or intermittent rotation. The special features of the thin section bearings enable customers to downsize their design and cut manufacturing costs without sacrificing bearing performance or life.
2. Sizes: Type X-Thin section four point contact ball bearings can carry radial load and axial load in double directions. One thin four point contact bearing can replace the two angular contact ball bearings. Thin Section Four Point Contact Ball Bearing bore diameter ranges from 1 inch to 40 inch, cross section ranges from 0.1875 × 0.1875 inch to 1.000 × 1.000 inch.
Send Inquiry Download

Type X Thin Section Bearing: Precision, Reliability, and Innovation

The Type X Thin Section Bearing's ultimate resource is here. Whether you work in aerospace, medical equipment, automation and robotics, automotive, or consumer electronics, this product page was designed with you in mind. Let's take a look at the reasons why the product is the best option for you.

What is the Type X Thin Section Bearing?

It is designed for high-precision applications with strict performance requirements and limited space. These bearings are made to withstand radial and axial loads while remaining extremely rigid and precise. They are ideal for industries that require compact components without sacrificing reliability because of their slim profile.

CHG Bearing: Your Trusted Partner for Type X Thin Section Bearings

We are proud to be a leading supplier and manufacturer of Type X Thin Section Bearing at CHG Bearing. We stand out thanks to our dedication to innovation and quality:

  • Solutions and Customization: We make custom solutions to meet the specific needs of different working environments.
  • Experience: We have been in business for more than 30 years and have worked with a lot of big companies to make bearings of high quality that go above and beyond expectations.
  • Certificates and Patents: In order to guarantee high-quality products and procedures, our business holds more than 50 invention patents and is accredited with ISO9001 for quality management and ISO14001 for environmental management.

For more information or to discuss your specific requirements, please contact us at sale@chg-bearing.com.

Type X Thin Section Bearing and Its Benefits

 It offers several advantages that make it an optimal choice for various applications:

  • Compact Design: Its thin profile allows for use in space-constrained environments.
  • High Precision: Provides superior accuracy, making it ideal for high-precision machinery.
  • Durability: Built to withstand harsh conditions and deliver reliable performance over time.
  • Versatility: Suitable for a wide range of industries and applications.

Applications

The product is used across diverse sectors, including:

  • Aerospace: For precision components in aircraft and satellites.
  • Medical Equipment: In surgical instruments and diagnostic tools requiring high reliability.
  • Automation and Robotics: In industrial robots and automation systems seeking efficiency and lightweight solutions.
  • Automotive: In electric vehicles and high-performance automotive parts.
  • Consumer Electronics: In precision instruments and high-end electronic devices.

Installation Guide

1.Preparation: Make certain that there are no contaminants in the installation area.

2.Alignment: Make sure the bearing is in line with the housing and shaft.

3.Mounting: Press-fitting the bearing into place without causing damage can be accomplished with the right tools.

4.Testing: To ensure proper operation, test the bearing under operating conditions following installation.

Maintenance and Care

To guarantee your bearing's long life and high performance:

  • Regular checkups: Verify for any indications of damage, wear, or misalignment.
  • Lubrication: Apply the recommended lubricant at the manufacturer-specified intervals.
  • Cleaning: Make sure there is nothing impurities on the bearing.
  • Environment: Keep the bearing safe from harsh environments that could hurt its performance.

FAQ

Q: What industries use Type X Thin Section Bearings?
A: These bearings are utilized in aerospace, medical equipment, automation, automotive, and consumer electronics industries.

Q: How do I determine the right Type X Thin Section Bearing for my application?
A: Consider factors such as load requirements, space constraints, and operating conditions. Contact our team for customized recommendations.

Q: Can it be customized?
A: Yes, we offer customization to meet specific requirements for various applications.

Q: What certifications does CHG Bearing hold?
A: CHG Bearing is certified with ISO9001, ISO14001, and holds numerous invention patents.

Customer Reviews

Here’s what our customers are saying about the products:

  • John D., Aerospace Engineer: "The Type X bearings from CHG have exceeded our expectations in terms of precision and durability. Highly recommend!"
  • Sarah L., Medical Equipment Supplier: "Excellent performance and reliability in our diagnostic equipment. The customization options were a huge plus."

Contact Us

Are you ready to make use of the Type X Thin Section Bearing in precision applications? Send us an email at sale@chg-bearing.com. Don't hesitate to get in touch if you need any more assistance!

HJHA series
Type (inch/mm) Dimension Basic Load Ratings(N) Weight
d D L1 L2 Radial Thrust Kg
Cor Cr Coa Ca
HJHA010X 1 1.375 1.108 1.274 1290 670 3205 1650 0.016
25.4 34.952 29 31.4
HJHA015X 1.5 1.875 1.608 1.774 1780 800 4450 2050 0.024
38.1 47.625 41.7 44.1



HJA series
Type (inch/mm) Dimension Basic Load Ratings(N) Weight
d D L1 L2 Radial Thrust Kg
Cor Cr Coa Ca
HJA020X 2 2.5 2.148 2.356 3020 1420 7600 3510 0.045
50.8 63.5 54.6 59.8
HJA025X 2.5 3 2.648 2.856 3690 1600 9290 4050 0.054
63.5 76.2 62.7 72.5
HJA030X 3 3.5 3.148 3.356 4400 1820 10980 4490 0.064
76.2 88.9 80 85.2
HJA035X 3.5 4 3.648 3.856 5070 2000 12670 4930 0.077
88.9 101.6 92.7 98
HJA040X 4 4.5 4.148 4.356 5730 2130 14310 5380 0.086
101.6 114.3 105.4 110.6
HJA042X 4.2 4.75 4.398 4.606 6090 2220 15160 5600 0.091
107.95 120.65 111.7 117
HJA045X 4.5 5 4.648 4.856 6400 2310 16000 5820 0.095
114.3 127 118 123.3
HJA047X 4.75 5.25 4.898 5.106 6760 2400 16850 6000 0.1
120.65 133.35 124.4 129.7
HJA050X 5 5.5 5.148 5.356 7070 2490 17690 6220 0.104
127 139.7 130.8 136
HJA055X 5.5 6 5.648 5.856 7780 2620 19380 6580 0.113
139.7 152.4 143.5 148.7
HJA060X 6 6.5 6.148 6.356 8450 2800 21070 6980 0.127
152.4 165.1 156.2 161.4
HJA065X 6.5 7 6.648 6.856 9110 2930 22760 7330 0.136
165.1 177.8 168.9 174.1



HJB series
Type (inch/mm) Dimension Basic Load Ratings(N) Weight
d D L1 L2 Radial Thrust Kg
Cor Cr Coa Ca
HJB020X 2 2.625 2.136 2.362 4130 2000 10400 5020 0.068
50.8 66.675 54.3 60
HJB025X 2.5 3.125 2.636 2.862 5070 2310 12620 5730 0.086
63.5 79.375 67 72.7
HJB030X 3 3.625 3.136 3.362 5960 2580 14890 6400 0.1
76.2 92.075 79.7 85.4
HJB035X 3.5 4.125 3.636 3.862 6850 2800 17160 7070 0.122
88.9 104.775 92.4 98.1
HJB040X 4 4.625 4.136 4.362 7780 3070 19430 7650 0.136
101.6 117.475 105 110.8
HJB042X 4.2 4.875 4.386 4.662 8130 3160 20310 7910 0.141
107.95 123.825 111.4 118.4
HJB045X 4.5 5.125 4.636 4.862 8670 3290 21690 8220 0.154
114.3 130.175 117.8 123.5
HJB047X 4.75 5.375 4.886 5.162 9020 3380 22580 8450 0.159
120.65 136.525 124.1 131.1
HJB050X 5 5.625 5.136 5.362 9560 3510 23910 8800 0.168
127 142.875 130.5 136.2
HJB055X 5.5 6.125 5.636 5.862 10490 3730 26180 9340 0.181
139.7 155.575 143.2 148.9
HJB060X 6 6.625 6.136 6.362 11380 3960 28450 9870 0.2
152.4 168.275 155.9 161.6
HJB065X 6.5 7.125 6.638 6.862 12270 4130 30720 10400 0.213
165.1 180.975 168.6 174.3



HJU series
Type (inch/mm) Dimension Basic Load Ratings(N) Weight
d D L1 L2 Radial Thrust Kg
Cor Cr Coa Ca
HJU040X 4 4.75 4.15 4.547 9340 3910 23380 9820 0.249
101.6 120.65 105.4 115.5
HJU042X 4.25 5 4.4 4.797 9870 4090 24710 10180 0.263
107.95 127 111.76 121.8
HJU045X 4.5 5.25 4.65 5.047 10400 4220 26050 10580 0.277
114.3 133.35 118.1 128.2
HJU047X 4.75 5 4.9 5.295 10940 4360 27380 10940 0.295
120.65 139.7 124.5 134.5
HJU050X 5 5.75 5.15 5.545 11510 4490 28720 11290 0.308
127 146.05 130.8 140.8
HJU055X 5.5 6.25 5.56 6.042 12580 4800 31380 11960 0.336
139.7 158.75 143.5 153.5
HJU060X 6 6.75 6.15 6.542 13650 5070 34050 12620 0.367
152.4 171.45 156.2 166.2
HJU065X 6.5 7.25 6.65 7.037 14710 5330 36760 13290 0.395
165.1 184.15 168.9 178.7
HJU070X 7 7.75 7.15 7.537 15780 5560 39430 13910 0.422
177.8 196.85 181.6 191.4
HJU075X 7.5 8.25 7.65 8.037 16850 5820 42090 14540 0.449
190.5 209.55 194.3 204.1
HJU080X 8 8.75 8.15 8.537 17910 6050 44760 15160 0.481
203.2 222.25 207 216.8
HJU090X 9 9.75 9.15 9.535 20050 6530 50100 16310 0.535
228.6 247.65 232.4 242.2
HJU100X 10 10.75 10.15 10.535 22180 6980 55430 17470 0.594
254 273.05 257.8 267.6
HJU110X 11 11.75 11.15 11.535 24310 7420 60810 18580 0.649
279.4 298.45 293.2 293
HJU120X 12 12.75 12.15 12.535 26450 7870 66140 19650 0.708
304.8 323.85 308.6 318.4



HJG series
Type Dimension(inch/mm) Basic Load Ratings(N) Weight
d D L1 L2 Radial Thrust Kg
Cor Cr Coa Ca
HJG120X 12 14 12.554 13.602 94860 37830 237140 94590 4.218
304.8 355.6 318.9 345.5
HJG140X 14 16 14.554 15.602 109440 41610 273630 104060 4.899
355.6 406.4 369.7 396.3
HJG160X 16 18 16.554 17.602 124060 45250 310130 113130 5.579
406.4 457.2 420.5 447.1
HJG180X 18 20 18.554 19.602 138640 48720 346620 121840 6.214
457.2 508 471.3 497.9
HJG200X 20 22 20.554 21.602 153220 52100 383070 130240 7.167
508 558.8 522.1 548.7
