Ultra-Thin Section Bearings: The Ultimate Guide to Compact, High-Precision Solutions

I. Product Overview

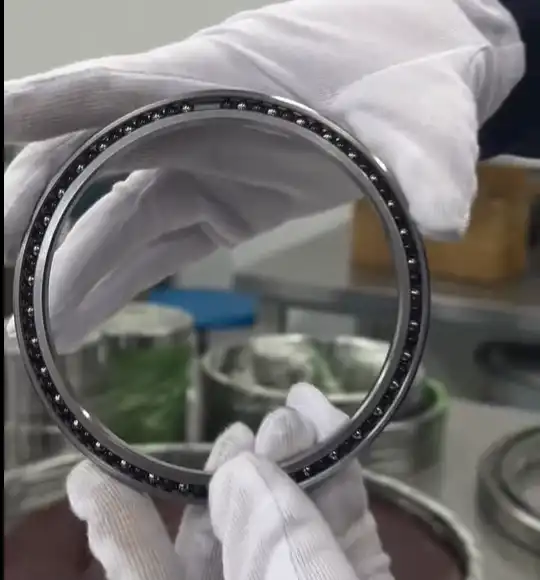

Ultra-thin section bearings (also called equal-section thin-wall bearings) feature uniformly thin inner and outer rings with a low height-to-width ratio (typically ≤0.25). Their lightweight and space-saving design makes them ideal for advanced applications. Common types include:

Thin-Section Deep Groove Ball Bearings: Handle radial and axial loads

Thin-Section Angular Contact Ball Bearings: Optimized for combined loads and high-precision requirements

Thin-Section Four-Point Contact Ball Bearings: Support bidirectional axial forces

Thin-Section Crossed Roller Bearings: Deliver high rigidity for precision rotation applications

Materials: High-carbon chromium steel (e.g., GCr15), stainless steel (e.g., G95Cr18), or ceramic. Surface treatments like silver plating or phosphating enhance performance.

II. Key Applications

Industrial Robots: Joints and rotary units (space/weight savings)

Aerospace: Satellite antennas, gyroscopes (lightweight demands)

Medical Equipment: CT scanners, surgical robots (high precision, low friction)

Semiconductor Machinery: Wafer handling arms (cleanroom compatibility)

Collaborative Robots: Require compactness and flexibility

Precision Instruments: Optical platforms, metrology devices

III. Advantages Over Standard Bearings

IV. Critical Performance Factors

1. Material & Heat Treatment

Steel purity and heat treatment (quenching/tempering) affect fatigue life.

Stainless steel bearings require corrosion resistance/strength balance.

2. Manufacturing Precision

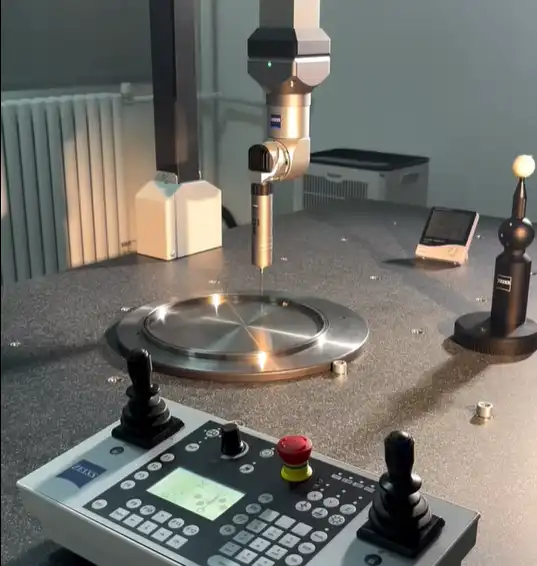

Raceway roundness (≤2μm), surface roughness (Ra≤0.1μm) ensure smooth operation.

3. Clearance & Preload

Excessive preload causes overheating; insufficient preload reduces rigidity (dynamic adjustment needed).

4. Lubrication

Thin walls dissipate heat poorly; use low-volatility grease (e.g., PFPE) or oil mist lubrication.

5. Installation Fit

Avoid excessive interference fits (recommended: H7/g6 tolerance).

6. Load Characteristics

For shock loads, reinforced cages (e.g., phenolic resin/monolithic metal) are essential.

7. Environmental Conditions

Vacuum environments: Use non-outgassing lubricants.

Corrosive settings: Apply coatings (e.g., nickel plating).

V. Selection Guide

High-Speed Applications: Angular contact ball bearings with oil-air lubrication.

Heavy Load/Low Speed: Crossed roller bearings perform best.

Extreme Environments: Ceramic balls + stainless steel (e.g., Si3N4+G95Cr18).

Engineered for precision and reliability, ultra-thin section bearings elevate performance in advanced systems—when properly selected and maintained.
