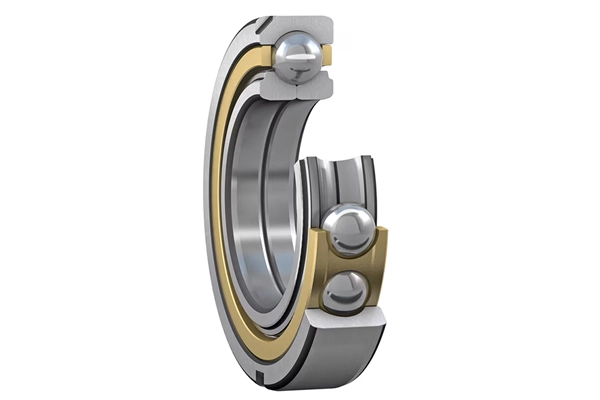

4 Point Contact Ball Bearing

1. Sizes: Inner Diameter: 150-480mm
Outer Diameter: 225-870mm, Weight: 5.1-470kg

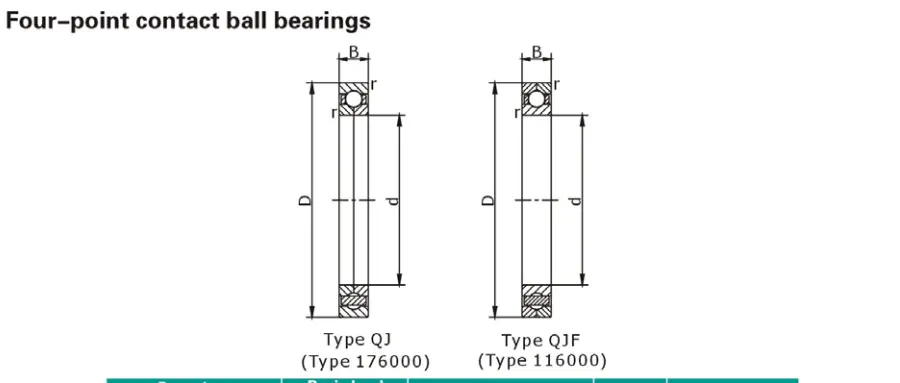

2. Type: QJ, QJF
3. Feature: Four point contact ball bearings are separable bearings, in which, type QJ0000 has two piece inner ring, type QJF0000 has two piece outer rings, their contact angle are both 35°. When carrying pure radial loads, each ball cotacts with rings ar four point, and they are two point contact under pure axial loads. The bearings can carry axial loads in two directions and certain moment loads, and have the features of single row and double row angular contact ball bearings. They only can work normally in high speed when two point contact is formed.
4. Cage: Brass or aluminium soild cages are exactly suitbale for four point contact ball bearings.
5. Material: GCr15/GCr15SiMn/G20Cr2Ni4A
Send Inquiry Download

4 Point Contact Ball Bearing: Your Comprehensive Guide

What is a 4 Point Contact Ball Bearing?

A specialized kind of bearing called a 4 Point Contact Ball Bearing is made to handle both radial and axial loads in various applications. The 4 point contact design, in contrast to conventional ball bearings, which typically accommodate radial loads, permits four points of contact between the ball and the raceway, accommodating higher axial loads in both directions. Because of this, it is ideal for applications that require robustness and high precision.

Key Features:

  • 4-Point Contact: Provides support for axial loads in both directions.
  • High Precision: Ensures smooth and reliable operation in demanding conditions.
  • Durability: Built to withstand high loads and harsh environments.

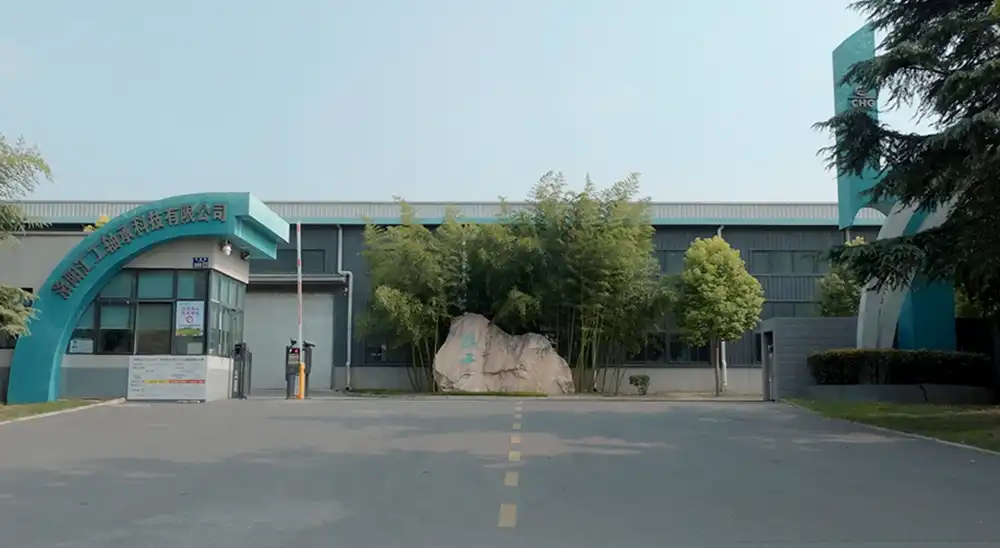

CHG Bearing: Your Trusted 4 Point Contact Ball Bearing Manufacturer

We are proud to be a leading manufacturer and supplier of 4 Point Contact Ball Bearing at CHG Bearing. We have a reputation for providing high-quality products and solutions that are tailored to various working conditions with over 30 years of industry experience.

Why Choose CHG Bearing?

  1. Customization and Solutions: We offer tailored solutions for different operational needs, ensuring that our bearings meet the specific requirements of your equipment and environment.
  2. Proven Experience: Our extensive experience includes partnerships with numerous large companies, demonstrating our capability and reliability in the industry.
  3. Innovative Technology: With more than 50 invention patents, we are at the forefront of technological advancements in bearing design and manufacturing.
  4. Certified Quality: We adhere to stringent quality standards, having passed ISO9001 quality management system and ISO14001 environmental management system certifications.

For inquiries or to discuss your specific needs, please contact us at sale@chg-bearing.com.

Technical Specifications

Feature Specification
Type 4 Point Contact Ball Bearing
Load Capacity High axial and radial loads
Precision High
Material Steel, Stainless Steel, Ceramic
Temperature Range Up to 200°C
Lubrication Grease, Oil, or Custom
Certifications ISO9001, ISO14001

4 Point Contact Ball Bearing Benefits

  • Enhanced Load Capacity: Capable of handling both radial and axial loads with ease.
  • Reduced Maintenance: Long-lasting performance reduces the need for frequent replacements.
  • Precision Engineering: Ensures accurate and reliable operation even in complex applications.
  • Versatility: Suitable for a wide range of industries including metallurgy and mining.

Applications

It is versatile and find applications in various industries:

  • Metallurgical Equipment: Used in blast furnaces, rolling mills, and steelmaking equipment.
  • Mining Machinery: Ideal for jaw crushers, impact crushers, and vibrating screens.
  • General Industrial Equipment: Suitable for use in various machinery requiring high load-bearing capabilities.

Installation Guide

  1. Preparation: Ensure the bearing and housing are clean and free from debris.
  2. Alignment: Properly align the bearing with the housing to avoid misalignment.
  3. Insertion: Gently press the bearing into the housing using appropriate tools to avoid damage.
  4. Lubrication: Apply the recommended lubricant based on your application needs.
  5. Testing: After installation, check the bearing for proper operation and alignment.

Maintenance and Care

  • Regular Inspection: Check for signs of wear, such as noise or vibration.
  • Lubrication: Ensure that bearings are properly lubricated according to manufacturer recommendations.
  • Cleaning: Keep the bearings and surrounding area clean to prevent contamination.
  • Replacement: Replace bearings if they show signs of significant wear or damage.

FAQ

1. What makes 4 Point Contact Ball Bearings different from other bearings?
4 Point Contact Ball Bearing can handle both radial and axial loads in multiple directions, unlike standard ball bearings which are primarily designed for radial loads.

2. How do I choose the right bearing for my application?
Consider factors like load requirements, operating environment, and precision needs. Consulting with a bearing specialist can help ensure you select the appropriate product.

3. What is the typical lifespan of a 4 Point Contact Ball Bearing?
Lifespan can vary based on application conditions, but regular maintenance and proper lubrication can significantly extend bearing life.

4. Can CHG Bearing customize bearings for specific applications?
Yes, CHG Bearing offers customization options to meet unique operational requirements and conditions.

Customer Reviews

  • "CHG Bearing's 4 Point Contact Ball Bearing have been a game-changer for our operations. Their reliability and performance are unmatched." – John D., Production Manager
  • "The customization options provided by CHG have perfectly met our demanding requirements. Highly recommended!" – Sarah M., Technical Engineer

Contact Us

Contact us at: for additional information or to place an order. sale@chg-bearing.com. We are eager to assist you with your bearing requirements!

Boundary dimensions Basic load ratings Part number Mass Installation dimersion Limiting speeds
mm kN Current Original kg mm r/min
d D B rmin Cr Cor damin Damax ramax Grease Oil
120 180 28 2 148 196 QJ1024   2.65 130 170 2 2600 3600
  215 40 2.1 286 340 QJ224   6.95 132 203 2 2200 3200
  260 55 3 390 490 QJ324   16 148 292 3 1900 2800
130 200 33 3 182 240 QJ1026   4.05 140 190 2 2200 3200
  230 40 3 296 365 QJ226   7.75 144 216 2.5 1900 2800
  280 58 4 423 560 QJ326   19.5 148 262 3 1800 2600
140 210 22 1.1 121 163 605647A   2.6 147 203 1 2000 3000
  210 33 2 190 265 QJ1028   4.3 150 200 2 2000 3000
  250 42 3 325 440 QJ228   9.85 154 236 2 1800 2600
  300 62 4 468 640 QJ328   24 158 282 3 1700 2400
150 225 35 2.1 225 275 QJ1030 176130 5.1 162 213 2 1900 2800
  270 45 3 302 372 QJ230 176230 12.5 164 256 2.5 1700 2400
  320 65 4 494 710 QJ330 176330 29 168 302 2 1600 2200
160 240 38 2.1 260 318 QJ1032 176132 6.3 172 228 2 1800 2600
  290 48 3 352 455 QJ232 176232 14.6 174 276 2.5 1600 2200
  340 68 4 585 865 QJ332 176332 31 178 388 3 1500 2000
170 260 42 2.1 226 350 QJ1034 176134 8.5 182 248 2 1700 2400
  265 42 2.1 226 350 QJF1034X1 176734X1 9 182 248 2 1300 1600
  310 52 4 358 480 QJ234 176234 19.5 188 292 3 1600 2200
  360 72 4 618 965 QJ334 176334 41.5 188 342 3 1400 1900
180 280 46 2.1 335 408 QJ1036 176136 11 192 268 2 1600 2200
  320 52 4 392 545 QJ236 176236 20.5 198 3020 3 1500 2000
  380 75   637 1020 QJ336   47.5 198 362 3 1300 1800



Boundary dimensions Basic load ratings Designations Mass Installation dimersion Limiting speeds
mm kN Current Original kg mm r/min
d D B rmin Cr Cor damin Damax ramax Grease Oil
190 290 46 2.1 348 430 QJ1038 179138 11.5 202 278 2 1600 2200
  340 55 4 455 735 QJ238 176238 39 208 322 3 1400 2200
200 310 51 2.1 380 498 QJ1040 176140 14.9 212 298 2 1500 2000
  360 58 4 507 850 QJ240 176240 27 218 342 3 1300 1800
  360 70 4 520 865 QJF1240 - 32.5 218 342 3 1300 1800
220 340 56 3 448 622 QJ1044 176144 19.6 234 326 2.5 1300 1800
  400 78 4 592 1020 QJ1244   45.5 238 382 3 1100 1600
  460 88 5 780 1400 QJ344   78 242 438 4 1000 1500
240 360 56 3 458 655 QJ1048 176148 21 254 346 2.5 1200 1700
  440 85 4 663 1220 QJ1248   61 258 422 3 1000 1500
260 360 46 2.1 390 710 QJ1952   15 271 349 2 1100 1600
  400 65 4 510 765 QJ1052 176152 31.3 278 382 3 1000 1500
280 420 65 4 540 835 QJ1056 176156 33.2 298 402 3 950 1400
  500 90 5 728 1460 QJ1256   82 302 478 4 950 1400
300 460 74 4 630 1040 QJF1060 116160 47 318 442 3 900 1300
  540 98 5 832 1760 QJ1260   105 322 518 4 850 1200
320 480 74 4 650 1090 QJ1064 176164 49.5 338 462 3 850 1200
  580 105 5 923 2040 QJ1264   130 342 558 4 800 1100
340 520 82 5 725 1270 QJ1068 176168 67.5 362 498 4 800 1100
  620 118 6 1060 2450 QJ1268   165 368 592 5 750 1000
360 540 82 5 768 1380 QJ1072 176172 69.2 382 518 4 800 1100
  650 122 6 999 2340 QJ 1272 1176272 190 388 622 5 700 950



Boundary dimensions Basic load ratings Designations Mass Installation dimersion Limiting speeds
mm kN Current Original kg mm r/min
d D B rmin Cr Cor damin Damax ramax Grease Oil
380 560 82 5 737 1710 QJ1076 176176 73.5 402 538 4 750 1000
  680 132 6 1053 2565 QJ1276 1176276 220 408 652 5 670 900
400 600 90 5 814 1944 QJ1080 176180 95.5 422 578 4 700 950
  720 140 6 1170 2925 QJ1280 1176280 265 428 692 5 600 800
420 560 65 4 573 1440 QJ1984 1176984 51 438 542 3 700 950
  620 90 5 831 2052 QJ1084 176184 99.5 442 598 4 670 900
  760 150 7.5 1287 3375 QJ1284 1176284 315 456 724 6 560 750
440 600 74 4 685 1710 QJ1988 1176988 65 458 582 3 670 900
  650 94 6 896 2250 QJ1088 176188 115 468 622 5 630 850
  790 155 7.5 1260 3375 QJ1288 1176288 350 476 754 6 560 750
460 680 100 6 936 2385 QJ1092 176192 130 488 652 5 600 800
  830 165 7.5 1377 3825 QJ1292 1176292 415 496 794 6 530 700
480 700 100 6 954 2520 QJ1096 176196 135 508 672 5 560 750
  870 170 7.5 1512 4275 QJ1296 1176296 470 516 834 6 500 670
