What are the Typical Applications of Four Row Tapered Roller Bearings?

Four Row Tapered Roller Bearings are sophisticated mechanical components designed to handle heavy radial and axial loads in various industrial applications. These bearings are characterized by their unique configuration of four rows of tapered rollers, which allows them to distribute loads evenly and provide exceptional stability under challenging operating conditions. Their robust design makes them ideal for use in machinery and equipment that require high load-bearing capacity, precise alignment, and the ability to withstand both radial and axial forces simultaneously.

How do Four Row Tapered Roller Bearings differ from other bearing types?



Four Row Tapered Roller Bearings stand out from other bearing types due to their distinctive design and superior performance characteristics. To fully appreciate their uniqueness, it's essential to understand their construction and compare them to other common bearing types.

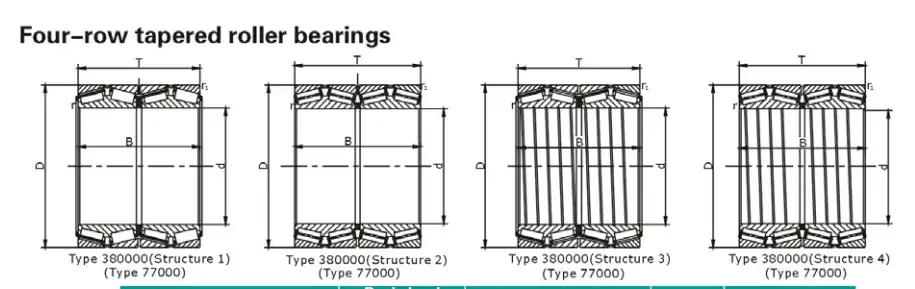

The primary feature that sets Four Row Tapered Roller Bearings apart is their configuration of four rows of tapered rollers. This arrangement allows for a significantly higher load-bearing capacity compared to single or double-row bearings. The tapered shape of the rollers enables them to handle both radial and axial loads efficiently, making them ideal for applications where forces come from multiple directions.



In contrast, ball bearings, which are widely used in many applications, have spherical rolling elements. While ball bearings are excellent for high-speed operations and have low friction, they generally have lower load-bearing capacities than tapered roller bearings, especially when it comes to axial loads. Ball bearings are typically used in lighter-duty applications or where speed is a priority over heavy load handling.



Cylindrical roller bearings, another common type, excel at handling heavy radial loads but have limited capacity for axial loads. They are often used in applications where the primary forces are radial, such as in electric motors or gearboxes. However, when significant axial forces are present, cylindrical roller bearings may not be suitable, whereas Four Row Tapered Roller Bearings can handle these forces with ease.



The geometry of Four Row Tapered Roller Bearings also provides an advantage in terms of contact area. The tapered rollers have a larger surface area in contact with the raceways compared to ball bearings or cylindrical roller bearings. This increased contact area allows for better load distribution and reduces the stress on individual components, contributing to longer bearing life and improved reliability under heavy loads.



Another key difference is the ability of Four Row Tapered Roller Bearings to be adjusted for preload or clearance. This adjustability is crucial in many industrial applications where precise shaft alignment and minimal play are required. By adjusting the preload, engineers can optimize the bearing's performance for specific operating conditions, something that is not possible with many other bearing types.



The multi-row configuration of Four Row Tapered Roller Bearings also provides enhanced stability compared to single or double-row bearings. This stability is particularly beneficial in applications where maintaining precise alignment is critical, such as in machine tool spindles or heavy industrial equipment.



What industries rely heavily on Four Row Tapered Roller Bearings?

Four Row Tapered Roller Bearings play a crucial role in various industries due to their exceptional load-bearing capacity and ability to handle complex forces. Their unique design makes them indispensable in applications where reliability, precision, and durability are paramount. Let's explore some of the key industries that heavily rely on these sophisticated bearings.



1. Steel Industry:

The steel industry is one of the primary users of Four Row Tapered Roller Bearings. In steel mills, these bearings are essential components in rolling mills, where they support the heavy rollers used to shape and flatten steel. The extreme loads and harsh operating conditions in steel production make Four Row Tapered Roller Bearings ideal due to their high load capacity and ability to withstand contamination and high temperatures. They are used in both hot and cold rolling processes, ensuring smooth operation and precise control of the rolling forces.



2. Mining and Construction Equipment:

In the mining and construction sectors, heavy machinery such as excavators, bulldozers, and large dump trucks rely on Four Row Tapered Roller Bearings to function effectively. These bearings are used in the wheel hubs, swing bearings of excavators, and various gearboxes of heavy equipment. The ability of these bearings to handle both radial and axial loads is crucial in applications where the machinery is subjected to multi-directional forces, such as when digging, lifting, or maneuvering on uneven terrain.



3. Wind Energy:

The renewable energy sector, particularly wind power, has become a significant user of Four Row Tapered Roller Bearings. In wind turbines, these bearings are used in the main rotor shaft, gearboxes, and yaw and pitch systems. The large size of modern wind turbines and the variable loads they experience due to changing wind conditions make Four Row Tapered Roller Bearings essential for reliable operation. Their ability to handle both the weight of the rotor and the thrust forces from the wind ensures efficient energy production and longevity of the turbine components.



4. Automotive Industry:

While not as common in passenger vehicles, Four Row Tapered Roller Bearings find extensive use in heavy-duty vehicles such as trucks, buses, and specialized transport equipment. They are typically used in wheel hubs, transmissions, and differentials of these vehicles. The bearings' ability to handle the high loads associated with heavy vehicles, combined with their capacity to be precisely adjusted for optimal performance, makes them ideal for ensuring smooth operation and long service life in demanding transportation applications.



5. Aerospace:

In the aerospace industry, Four Row Tapered Roller Bearings are used in various applications where high precision and reliability are critical. They can be found in aircraft landing gear, where they must withstand extreme loads during takeoff and landing. These bearings are also used in helicopter transmissions and rotor systems, where their ability to handle combined radial and axial loads is crucial for safe operation.



These industries represent just a fraction of the applications where Four Row Tapered Roller Bearings are essential. Their unique capabilities make them indispensable in scenarios where other bearing types may not suffice. As technology advances and industrial processes become more demanding, the role of these sophisticated bearings is likely to expand further, continuing to support critical operations across a wide range of sectors.



What are the maintenance requirements for Four Row Tapered Roller Bearings?



Proper maintenance of Four Row Tapered Roller Bearings is crucial for ensuring their longevity, optimal performance, and the overall reliability of the machinery in which they are installed. These sophisticated bearings, while robust, require careful attention to maintain their precision and load-bearing capabilities. Let's explore the key maintenance requirements and best practices for Four Row Tapered Roller Bearings.



1. Lubrication:

Proper lubrication is perhaps the most critical aspect of maintaining Four Row Tapered Roller Bearings. The lubricant serves multiple purposes: it reduces friction between the rolling elements and raceways, dissipates heat, and helps protect the bearing surfaces from corrosion and contamination.



- Selection of Lubricant: Choose a lubricant that is appropriate for the operating conditions, including temperature range, speed, and load. In many heavy-duty applications, high-quality grease is preferred, but oil lubrication may be necessary for high-speed operations or when heat dissipation is a concern.



- Relubrication Intervals: Establish a regular relubrication schedule based on the bearing size, operating conditions, and manufacturer recommendations. In some cases, automatic lubrication systems can be employed to ensure consistent and timely lubrication.



- Avoid Over-lubrication: While proper lubrication is essential, over-lubrication can lead to increased operating temperatures and potential seal damage. Follow manufacturer guidelines for the correct amount of lubricant.



2. Monitoring and Inspection:

Regular monitoring and inspection of Four Row Tapered Roller Bearings can help detect potential issues before they lead to catastrophic failure.



- Vibration Analysis: Implement a vibration monitoring program to detect changes in bearing condition. Increased vibration levels can indicate problems such as misalignment, wear, or damage.



- Temperature Monitoring: Unusually high operating temperatures can signify lubrication problems, excessive load, or other issues. Use thermal imaging or temperature sensors to monitor bearing temperatures.



- Visual Inspections: When possible, conduct visual inspections of the bearings and surrounding components. Look for signs of lubricant leakage, seal damage, or visible wear on accessible parts.



3. Cleanliness and Contamination Control:

Contamination is a leading cause of premature bearing failure. Implementing strict cleanliness protocols is essential for maintaining Four Row Tapered Roller Bearings.



- Sealing: Ensure that bearing seals or shields are in good condition to prevent the ingress of contaminants. In harsh environments, consider upgrading to more robust sealing solutions.



- Clean Work Environment: When performing maintenance or installations, ensure the work area is clean and free from dust, moisture, and other contaminants.



- Filtration: In oil-lubricated systems, use high-quality filtration to remove particles that could damage the bearing surfaces.



4. Proper Installation and Adjustment:

Correct installation and adjustment are crucial for the performance and lifespan of Four Row Tapered Roller Bearings.



- Alignment: Ensure precise alignment during installation. Misalignment can lead to uneven load distribution and premature wear.



- Preload or Clearance Adjustment: Four Row Tapered Roller Bearings often require specific preload or clearance settings. Follow manufacturer guidelines to achieve the correct adjustment for the application.



- Use of Proper Tools: Employ specialized tools and techniques for installation and removal to avoid damaging the bearings.



5. Training and Documentation:

Proper maintenance relies heavily on the knowledge and skills of maintenance personnel.



- Training Programs: Implement training programs to ensure that maintenance staff are familiar with the specific requirements of Four Row Tapered Roller Bearings.



- Maintenance Records: Keep detailed records of all maintenance activities, including lubrication, inspections, and any observed issues. This documentation can help identify trends and optimize maintenance schedules.



By adhering to these maintenance requirements and best practices, industries can maximize the performance and lifespan of Four Row Tapered Roller Bearings. Proper maintenance not only ensures the reliability of these critical components but also contributes to the overall efficiency and productivity of the machinery in which they are installed. As bearing technology continues to advance, maintenance practices may evolve, and it's important for maintenance professionals to stay informed about the latest recommendations and techniques specific to Four Row Tapered Roller Bearings.



In conclusion, Four Row Tapered Roller Bearings are vital components in numerous industries, enabling the operation of heavy machinery and equipment under challenging conditions. Their unique design allows them to handle high radial and axial loads, making them indispensable in applications ranging from steel mills to wind turbines. By understanding their applications, differences from other bearing types, and maintenance requirements, engineers and maintenance professionals can ensure optimal performance and longevity of these sophisticated bearings, ultimately contributing to the efficiency and reliability of industrial operations across various sectors.
