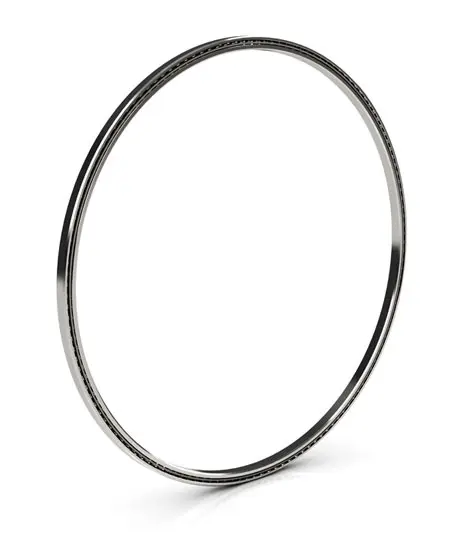

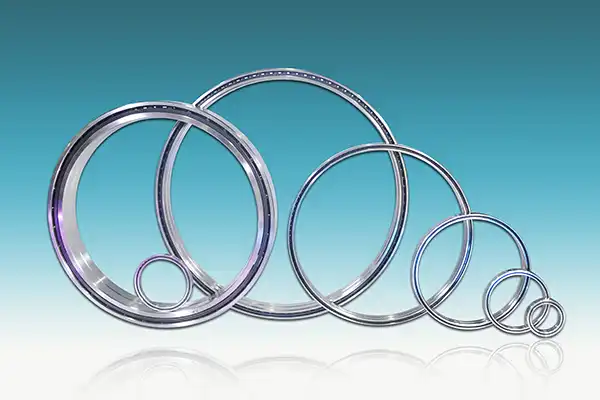

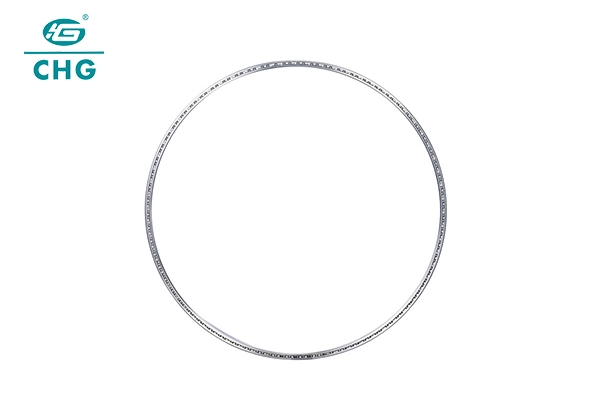

Thin Section Angular Contact Bearings

1. Feature: The difference between Type A - thin section angular contact ball bearings and standard angular contact ball bearings is that the section size is designed to be single, and the section bearing and standard size are unchanged in a series. It does not increase with pore size. Therefore, this angular contact open thin section bearing is called a constant-section thin-wall bearing. By using the same series of thin-section bearings throughout a products line, the designer could standardize on common components.
2. Sizes: Type A - Thin section angular contact ball bearings bore diameter ranges from 1 inch to 40 inch, Cross section ranges from 0.1875 × 0.1875 inch to 1.000 × 1.000 inch.
3. Advantage: Thin section bearings are designed to save space, decrease the overall weight, dramatically reduce friction, and provide excellent running accuracy. The special features of the thin section bearings enable customers to downsize their design and cut manufacturing costs without sacrificing bearing performance or life.
Send Inquiry Download

Thin Section Angular Contact Bearings: A Comprehensive Guide

Thin Section Angular Contact Bearings are precision-engineered components designed to handle both radial and axial loads with high accuracy. Unlike traditional bearings, thin section bearings are characterized by their reduced cross-section, which allows them to fit into applications where space is limited while maintaining exceptional performance. These bearings are crucial in industries requiring high precision and reliability, such as aerospace, medical equipment, automation, automotive, and consumer electronics.

Key Features:

  • Compact Design: Thin section bearings are designed to be lightweight and compact, ideal for space-constrained applications.
  • High Precision: They provide excellent performance in precision applications where accuracy is critical.
  • Versatile Load Handling: Capable of handling radial and axial loads simultaneously.

CHG Bearing: Your Trusted Thin Section Angular Contact Bearings Manufacturer

At CHG Bearing, we pride ourselves on being a leading manufacturer and supplier of Thin Section Angular Contact Bearings. With over 30 years of industry experience, we offer customized solutions tailored to various working conditions. Our commitment to quality and innovation is reflected in our extensive portfolio of over 50 invention patents and certifications, including ISO9001 and ISO14001.

Why Choose CHG Bearing?

  1. Customization and Solutions: We provide tailored solutions to meet the specific needs of different industries.
  2. Industry Experience: With three decades of expertise, we have established long-term partnerships with numerous large enterprises.
  3. Certifications: Our products are certified to meet high-quality and environmental standards.

Technical Specifications

Specification Description
Bore Size Various sizes available upon request
Outer Diameter Customizable to fit specific applications
Width Thin section design for space efficiency
Material High-grade steel or ceramic options
Precision Class P4, P5, or as required by the application
Load Capacity High radial and axial load capacities

Thin Section Angular Contact Bearings' Benefits

  • Enhanced Performance: Offers high accuracy and stability for critical applications.
  • Space Efficiency: Ideal for designs with limited space without compromising performance.
  • Durability: Designed to withstand demanding conditions and extend service life.

Applications

Thin Section Angular Contact Bearings find applications across various industries due to their versatility and performance:

  • Aerospace: Used in aircraft and satellite systems where precision and reliability are paramount.
  • Medical Equipment: Essential in surgical instruments and diagnostic equipment for accurate operations.
  • Automation and Robotics: Supports industrial robots and automation systems by providing lightweight and efficient motion control.
  • Automotive Industry: Applied in electric vehicles and high-performance automotive components.
  • Consumer Electronics: Integrates into high-end electronic products and precision instruments.

Installation Guide

  1. Preparation: Ensure the mounting surfaces are clean and free from debris.
  2. Alignment: Properly align the bearing with the shaft and housing to avoid misalignment.
  3. Installation: Use appropriate tools and techniques to install the bearing without damaging it.
  4. Verification: Check for smooth rotation and correct positioning after installation.

Maintenance and Care

  • Regular Inspection: Periodically inspect the bearings for signs of wear or damage.
  • Lubrication: Maintain proper lubrication to ensure smooth operation and prevent corrosion.
  • Cleaning: Keep the bearings clean and free from contaminants to extend their lifespan.

FAQ

Q: What industries use Thin Section Angular Contact Bearings?
A: These bearings are used in aerospace, medical equipment, automation, automotive, and consumer electronics industries.

Q: Can CHG Bearing provide customized product?
A: Yes, we offer tailored solutions based on your specific requirements.

Q: What are the key advantages of our product?
A: They offer high precision, space efficiency, and durability for demanding applications.

Customer Reviews

“CHG Bearing provided us with a customized solution that perfectly met our needs. Their expertise and customer service are exceptional!” – Aerospace Industry Client

“The thin section bearings we received from CHG Bearing have significantly improved our product's performance. Highly recommend!” – Automotive Industry Client

Contact Us

For more information or to request a quote, please reach out to us:

Explore our range of Thin Section Angular Contact Bearings and experience the CHG Bearing difference today. We look forward to working with you!
