Type C Thin Section Bearing
1. Feature: Type C - Thin section radial contact ball bearings were designed to save space, lower the overall weight of your designs, dramatically reduce friction, and provide excellent running accuracy ect. With thin section bearings you could downsize your design and cut manufacturing costs, without sacrificing bearing performance or life.
2. Sizes: Type C - Thin section radial contact ball bearings bore diameter ranges from 1 inch to 40 inch, cross section ranges from 0.1875 × 0.1875 inch to 1.000 × 1.000 inch. Compared to standard section bearings, thin section radial contact ball bearing with their large complements of small diameter balls provide greater stiffness and lower torque while permitting a significant reduction in weight and space.
3. Application:These advantages have found wide acceptance in many critical applications including ordnance and are os pace guidance systems, large diameter encoders and radar support systems. In some area, the bearing is required anti-friction & clean & well lubricated, then, double sealed or single deep groove bearings is optimal choice.
2. Sizes: Type C - Thin section radial contact ball bearings bore diameter ranges from 1 inch to 40 inch, cross section ranges from 0.1875 × 0.1875 inch to 1.000 × 1.000 inch. Compared to standard section bearings, thin section radial contact ball bearing with their large complements of small diameter balls provide greater stiffness and lower torque while permitting a significant reduction in weight and space.
3. Application:These advantages have found wide acceptance in many critical applications including ordnance and are os pace guidance systems, large diameter encoders and radar support systems. In some area, the bearing is required anti-friction & clean & well lubricated, then, double sealed or single deep groove bearings is optimal choice.

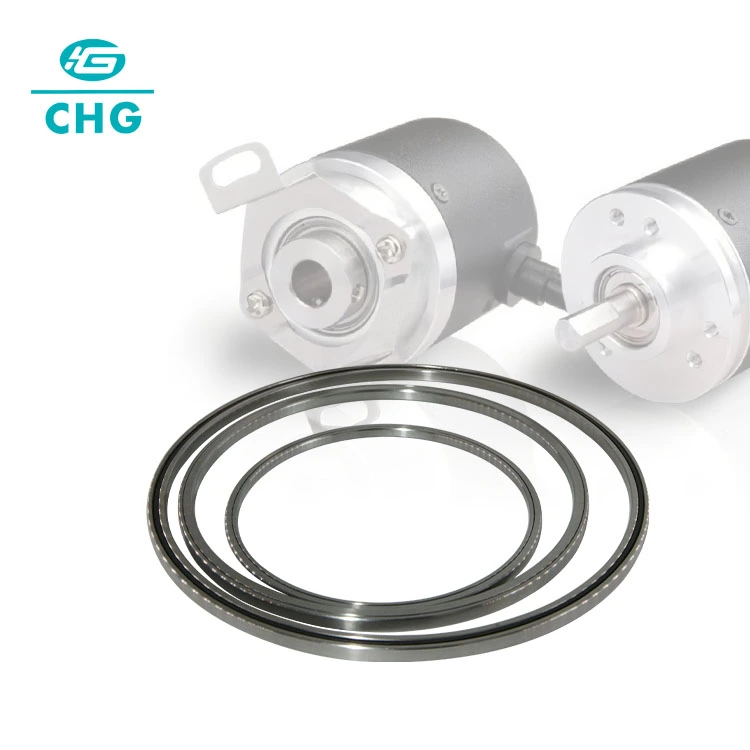

Type C Thin Section Bearing: Precision, Reliability, and Innovation
The cutting-edge Type C Thin Section Bearing, developed to meet the high demands of various industries, is the subject of this comprehensive guide. If you are aware of the benefits and specifications of the products, you will be able to make well-informed choices in a wide range of sectors, such as aerospace, medical equipment, automation, automotive, consumer electronics, and aerospace.
What is Type C Thin Section Bearing?
Precision-made for applications where space is at a premium but high performance is required, the product is ideal. The ability of these bearings to effectively withstand radial and axial loads as well as their lightweight and compact design are well-known features. They are ideal for applications requiring precise movement and high reliability in tight spaces due to their thin cross-section.
CHG Bearing: Your Trusted Partner in Precision
CHG Bearing stands out as a leading manufacturer and supplier of Type C Thin Section Bearing. With over 30 years of industry experience, we offer:
-
Customization and Solutions: We provide tailored solutions to meet diverse working conditions and technical requirements, ensuring optimal performance for your specific needs.
-
Extensive Industry Experience: Our capability and dependability are demonstrated by our extensive relationships with major businesses operating in a variety of industries.
-
Innovative Excellence: We are committed to advancing technology and maintaining high standards and hold over 50 invention patents. Our products have received prestigious certifications from ISO9001 for quality management and ISO14001 for environmental management.
For more information or to discuss your needs, please contact us at sale@chg-bearing.com.
Technical Specifications
Here are the key specifications of our products:
| Specification | Details |
|---|---|
| Inner Diameter | Customizable |
| Outer Diameter | Customizable |
| Width | Customizable |
| Material | GCr15, 9Cr18 or ceramic |
| Load Capacity | Radial and axial load capacities available |
| Temperature Range | Wide temperature range |
| Certifications | ISO9001, ISO14001 |
Type C Thin Section Bearings and Their Benefits
The Type C Thin Section Bearing offers several advantages, making it a preferred choice for demanding applications:
- Space Efficiency: Its thin design allows for compact machinery and equipment, ideal for applications with space constraints.
- Precision Performance: Delivers high accuracy and smooth operation, essential for precision instruments and high-performance parts.
- Versatility: Adaptable to a variety of load requirements and operating conditions, suitable for aerospace, medical, and robotics industries.
Applications
The products are widely used across multiple sectors:
- Aerospace: In aircraft and satellite systems, where precision and reliability are paramount.
- Medical Equipment: For surgical instruments and diagnostic tools requiring exact movement and minimal wear.
- Automation and Robotics: In industrial robots and automation systems, where lightweight and efficient components are crucial.
Installation Guide
Proper installation of the products ensures optimal performance and longevity:
- Preparation: Ensure all components are clean and free from debris.
- Alignment: Properly align the bearing with the shaft and housing.
- Fit: Gently press or slide the bearing into place, ensuring a snug fit without excessive force.
- Lubrication: Apply the appropriate lubricant as per manufacturer recommendations.
Maintenance and Care
To maximize the lifespan of your products:
- Regular Inspection: Periodically check for signs of wear or damage.
- Lubrication: Keep bearings well-lubricated according to usage and environmental conditions.
- Cleaning: Ensure bearings and surrounding areas are clean to avoid contamination.
FAQ
Q: What is the difference between Type C Thin Section Bearings and standard bearings?
A: The products are designed with a thinner profile, making them suitable for applications where space is limited but precision is required. They offer similar load capacities as standard bearings but in a more compact form.
Q: Can the products be customized?
A: Yes, CHG Bearing offers customization options to meet specific requirements for inner diameter, outer diameter, width, and materials.
Q: What industries use Type C Thin Section Bearings?
A: They are used in aerospace, medical equipment, automation and robotics, automotive, and consumer electronics..
Customer Reviews
Some of our clients have to say about CHG Bearing's Type C Thin Section Bearing:
- John D., Aerospace Engineer: “The precision and reliability of these bearings have significantly enhanced our satellite systems.”
- Linda T., Medical Device Manufacturer: “These bearings have proven to be extremely durable and efficient in our diagnostic equipment.”
- Michael R., Robotics Specialist: “The customization options allowed us to integrate these bearings seamlessly into our robotic arms.”
Contact Us
Please get in touch with us for more information or to request a quote: sale@chg-bearing.com. We look forward to assisting you with your bearing requirements and project objectives.
| OPEN -- Radial Contact - HKAA series | |||||||
| Part number | Dimension(inch/mm) | Basic Cap.（N） | Weight（Kg） | ||||
| d | D | L1 | L2 | Cor | Cr | ||
| HKAA010C | 1 | 1.375 | 1.142 | 1.236 | 1290 | 840 | 0.012 |
| 25.4 | 34.925 | 29 | 31.4 | ||||
| HKAA015C | 1.5 | 1.875 | 1.642 | 1.736 | 1780 | 1000 | 0.018 |
| 38.1 | 47.625 | 41.7 | 44.1 | ||||
| OPEN -- Radial Contact - HKA series | |||||||
| Part number | Dimension(inch/mm) | Basic Cap.（N） | Weight（Kg） | ||||
| d | D | L1 | L2 | Cor | Cr | ||
| HKA020C | 2 | 2.5 | 2.186 | 2.134 | 3020 | 1750 | 0.048 |
| 50.8 | 63.5 | 55.5 | 58.8 | ||||
| HKA025C | 2.5 | 3 | 2.686 | 2.814 | 3690 | 1960 | 0.059 |
| 63.5 | 76.2 | 68.2 | 71.5 | ||||
| HKA030C | 3 | 3.5 | 3.186 | 3.314 | 4400 | 2160 | 0.068 |
| 76.2 | 88.9 | 80.9 | 84.2 | ||||
| HKA035C | 3.5 | 4 | 3.686 | 3.814 | 5070 | 2360 | 0.082 |
| 88.9 | 101.6 | 93.6 | 96.9 | ||||
| HKA040C | 4 | 4.5 | 4.186 | 4.314 | 5730 | 2540 | 0.09 |
| 101.6 | 114.3 | 106.3 | 109.6 | ||||
| HKA042C | 4.25 | 4.75 | 4.436 | 4.564 | 6090 | 2630 | 0.095 |
| 107.95 | 120.65 | 112.7 | 115.9 | ||||
| HKA045C | 4.5 | 5 | 4.686 | 4.814 | 6400 | 2710 | 0.1 |
| 114.3 | 127 | 119 | 122.3 | ||||
| HKA047C | 4.75 | 5.25 | 4.936 | 5.064 | 6760 | 2800 | 0.104 |
| 120.65 | 133.35 | 125.4 | 128.6 | ||||
| HKA050C | 5 | 5.5 | 5.186 | 5.314 | 7070 | 2880 | 0.109 |
| 127 | 139.7 | 131.7 | 135 | ||||
| HKA055C | 5.5 | 6 | 5.686 | 5.814 | 7780 | 3040 | 0.118 |
| 139.7 | 152.4 | 144.4 | 147.7 | ||||
| HKA060C | 6 | 6.5 | 6.186 | 6.314 | 8450 | 3200 | 0.13 |
| 152.4 | 165.1 | 157.1 | 160.4 | ||||
| HKA065C | 6.5 | 7 | 6.686 | 6.814 | 9110 | 3350 | 0.14 |
| 165.1 | 1.778 | 169.8 | 173.1 | ||||
| HKA070C | 7 | 7.5 | 7.186 | 7.314 | 9780 | 3500 | 0.15 |
| 177.8 | 190.5 | 182.5 | 185.8 | ||||
| HKA075C | 7.5 | 8 | 7.686 | 7.814 | 10450 | 3650 | 0.16 |
| 190.5 | 203.2 | 195.2 | 198.5 | ||||
| HKA080C | 8 | 8.5 | 8.186 | 8.314 | 11110 | 3780 | 0.172 |
| 203.2 | 215.9 | 207.9 | 211.2 | ||||
| HKA090C | 9 | 9.5 | 9.186 | 9.314 | 12490 | 4050 | 0.2 |
| 228.6 | 241.3 | 233.3 | 236.6 | ||||
| HKA100C | 10 | 10.5 | 10.186 | 10.314 | 13820 | 4300 | 0.227 |
| 254 | 266.7 | 258.7 | 262 | ||||
| HKA110C | 11 | 11.5 | 11.186 | 11.314 | 15160 | 4560 | 0.236 |
| 279.4 | 292.1 | 284.1 | 287.4 | ||||
| HKA120C | 12 | 12.5 | 12.186 | 12.314 | 16540 | 4790 | 0.254 |
| 304.8 | 317.5 | 309.5 | 312.8 | ||||
| OPEN -- Radial Contact - HKB series | |||||||
| Part number | Dimension(inch/mm) | Basic Cap.（N） | Weight（Kg） | ||||
| d | D | L1 | L2 | Cor | Cr | ||
| HKB020C | 2 | 2.625 | 2.231 | 2.393 | 4130 | 2560 | 0.073 |
| 50.8 | 66.675 | 56.7 | 60.8 | ||||
| HKB025C | 2.5 | 3.125 | 2.731 | 2.893 | 5070 | 2860 | 0.091 |
| 63.5 | 79.375 | 69.4 | 73.5 | ||||
| HKB030C | 3 | 3.625 | 3.231 | 3.393 | 5960 | 3140 | 0.109 |
| 76.2 | 92.075 | 82.1 | 86.2 | ||||
| HKB035C | 3.5 | 4.125 | 3.731 | 3.893 | 6850 | 3450 | 0.125 |
| 88.9 | 104.775 | 94.8 | 98.9 | ||||
| HKB040C | 4 | 4.625 | 4.432 | 4.393 | 7780 | 3670 | 0.14 |
| 101.6 | 117.475 | 107.5 | 111.6 | ||||
| HKB042C | 4.2 | 4.875 | 4.481 | 4.643 | 8130 | 3760 | 0.147 |
| 107.95 | 123.825 | 113.8 | 117.9 | ||||
| HKB045C | 4.5 | 5.125 | 4.731 | 4.893 | 8670 | 3910 | 0.16 |
| 114.3 | 130.175 | 120.2 | 124.3 | ||||
| HKB047C | 4.75 | 5.375 | 4.981 | 5.143 | 9020 | 4010 | 0.163 |
| 120.65 | 136.525 | 126.6 | 130.6 | ||||
| HKB050C | 5 | 5.625 | 5.231 | 5.393 | 9560 | 4150 | 0.172 |
| 127 | 142.875 | 132.9 | 137 | ||||
| HKB055C | 5.5 | 6.125 | 5.731 | 5.893 | 10490 | 4375 | 0.186 |
| 139.7 | 155.575 | 145.6 | 149.7 | ||||
| HKB060C | 6 | 6.625 | 6.231 | 6.393 | 11380 | 4600 | 0.205 |
| 152.4 | 168.275 | 158.3 | 162.4 | ||||
| HKB065C | 6.5 | 7.125 | 6.731 | 6.893 | 12270 | 4810 | 0.216 |
| 165.1 | 180.975 | 171 | 175.1 | ||||
| HKB070C | 7 | 7.625 | 7.231 | 7.393 | 13200 | 5020 | 0.232 |
| 177.8 | 193.675 | 183.7 | 187.8 | ||||
| HKB075C | 7.5 | 8.125 | 7.731 | 7.893 | 14090 | 5220 | 0.25 |
| 190.5 | 206.375 | 196.4 | 200.5 | ||||
| HKB080C | 8 | 8.625 | 8.231 | 8.393 | 14980 | 5420 | 0.262 |
| 203.2 | 219.075 | 209.1 | 213.2 | ||||
| HKB090C | 9 | 9.625 | 9.231 | 9.393 | 16800 | 5800 | 0.3 |
| 228.6 | 244.475 | 234.5 | 238.6 | ||||
| HKB100C | 10 | 10.625 | 10.231 | 10.393 | 18620 | 6160 | 0.331 |
| 254 | 269.875 | 259.9 | 264 | ||||
| HKB110C | 11 | 11.625 | 11.231 | 11.393 | 20400 | 6510 | 0.36 |
| 279.4 | 295.275 | 285.3 | 289.4 | ||||
| HKB120C | 12 | 12.625 | 12.231 | 12.393 | 22230 | 6840 | 0.39 |
| 304.8 | 320.675 | 310.7 | 314.8 | ||||
| HKB140C | 14 | 14.625 | 14.231 | 14.393 | 25830 | 7470 | 0.476 |
| 355.6 | 371.475 | 361.5 | 365.6 | ||||
| HKB160C | 16 | 16.625 | 16.231 | 16.393 | 29430 | 8050 | 0.544 |
| 406.4 | 422.275 | 412.3 | 416.4 | ||||
| HKB180C | 18 | 18.625 | 18.231 | 18.393 | 33070 | 8610 | 0.612 |
| 457.2 | 473.075 | 463.1 | 467.2 | ||||
| HKB200C | 20 | 20.625 | 20.231 | 20.393 | 36670 | 9130 | 0.68 |
| 508 | 523.875 | 513.9 | 518 | ||||
| OPEN -- Radial Contact - HKC series | |||||||
| Part number | Dimension(inch/mm) | Basic Cap.（N） | Weight（Kg） | ||||
| d | D | L1 | L2 | Cor | Cr | ||
| HKC040C | 4 | 4.75 | 4.277 | 4.473 | 9330 | 4770 | 0.204 |
| 101.6 | 120.65 | 108.6 | 113.6 | ||||
| HKC042C | 4.25 | 5 | 4.527 | 4.723 | 9780 | 4920 | 0.213 |
| 107.95 | 127 | 115 | 120 | ||||
| HKC045C | 4.5 | 5.25 | 4.777 | 4.973 | 10400 | 5080 | 0.225 |
| 114.3 | 133.35 | 121.3 | 126.3 | ||||
| HKC047C | 4.75 | 5 | 5.027 | 5.223 | 10930 | 5230 | 0.235 |
| 120.65 | 139.7 | 127.7 | 132.7 | ||||
| HKC050C | 5 | 5.75 | 5.277 | 5.473 | 11510 | 5370 | 0.263 |
| 127 | 146.05 | 134 | 139 | ||||
| HKC055C | 5.5 | 6.25 | 5.777 | 5.973 | 12580 | 5660 | 0.268 |
| 139.7 | 158.75 | 146.7 | 151.7 | ||||
| HKC060C | 6 | 6.75 | 6.277 | 6.473 | 13650 | 5940 | 0.295 |
| 152.4 | 171.45 | 159.4 | 164.4 | ||||
| HKC065C | 6.5 | 7.25 | 6.777 | 6.973 | 14710 | 6210 | 0.312 |
| 165.1 | 184.15 | 172.1 | 177.1 | ||||
| HKC070C | 7 | 7.75 | 7.277 | 7.473 | 15780 | 6480 | 0.34 |
| 177.8 | 196.85 | 184.4 | 189.8 | ||||
| HKC075C | 7.5 | 8.25 | 7.777 | 7.973 | 16850 | 6730 | 0.36 |
| 190.5 | 209.55 | 197.5 | 202.5 | ||||
| HKC080C | 8 | 8.75 | 8.277 | 8.473 | 17910 | 6980 | 0.387 |
| 203.2 | 222.25 | 210.2 | 215.2 | ||||
| HKC090C | 9 | 9.75 | 9.277 | 9.473 | 20050 | 7460 | 0.45 |
| 228.6 | 247.65 | 235.6 | 240.6 | ||||
| HKC100C | 10 | 10.75 | 10.277 | 10.473 | 22180 | 7920 | 0.481 |
| 254 | 273.05 | 261 | 266 | ||||
| HKC110C | 11 | 11.75 | 11.277 | 11.473 | 24310 | 8350 | 0.526 |
| 279.4 | 298.45 | 286.4 | 291.4 | ||||
| HKC120C | 12 | 12.75 | 12.277 | 12.473 | 26450 | 8770 | 0.567 |
| 304.8 | 323.85 | 311.8 | 316.8 | ||||
| HKC140C | 14 | 14.75 | 14.277 | 14.473 | 30720 | 9570 | 0.689 |
| 355.6 | 374.65 | 362.6 | 367.6 | ||||
| HKC160C | 16 | 16.75 | 16.277 | 16.473 | 35030 | 10320 | 0.785 |
| 406.4 | 425.45 | 413.4 | 418.4 | ||||
| HKC180C | 18 | 18.75 | 18.277 | 18.473 | 39290 | 11020 | 0.88 |
| 457.2 | 476.25 | 464.2 | 469.2 | ||||
| HKC200C | 20 | 20.75 | 20.277 | 20.473 | 43560 | 11670 | 0.98 |
| 508 | 527.05 | 515 | 520 | ||||
| OPEN -- Radial Contact - HKD series | |||||||
| Part number | Dimension (inch/mm) | Basic Cap.（N） | Weight（Kg） | ||||
| d | D | L1 | L2 | Cor | Cr | ||
| HKD040C | 4 | 5 | 4.37 | 4.63 | 13690 | 7800 | 0.366 |
| 101.6 | 127 | 111 | 117.6 | ||||
| HKD042C | 4.25 | 5.25 | 4.62 | 4.88 | 14180 | 7940 | 0.386 |
| 107.95 | 133.35 | 117.3 | 124 | ||||
| HKD045C | 4.5 | 5.5 | 4.87 | 5.13 | 15200 | 8270 | 0.405 |
| 114.3 | 139.7 | 123.7 | 130.3 | ||||
| HKD047C | 4.75 | 5.75 | 5.12 | 5.38 | 15690 | 8410 | 0.426 |
| 120.65 | 146.05 | 130 | 136.7 | ||||
| HKD050C | 5 | 6 | 5.37 | 5.63 | 16710 | 8730 | 0.454 |
| 127 | 152.4 | 136.4 | 143 | ||||
| HKD055C | 5.5 | 6.5 | 5.87 | 6.13 | 18230 | 9170 | 0.485 |
| 139.7 | 165.1 | 149.1 | 155.7 | ||||
| HKD060C | 6 | 7 | 6.37 | 6.63 | 19780 | 9600 | 0.526 |
| 152.4 | 177.8 | 161.8 | 168.4 | ||||
| HKD065C | 6.5 | 7.5 | 6.87 | 7.13 | 21290 | 10020 | 0.566 |
| 165.1 | 190.5 | 174.5 | 181.1 | ||||
| HKD070C | 7 | 8 | 7.37 | 7.63 | 22800 | 10420 | 0.606 |
| 177.8 | 203.2 | 187.2 | 193.8 | ||||
| HKD075C | 7.5 | 8.5 | 7.87 | 8.13 | 24310 | 10820 | 0.65 |
| 190.5 | 215.9 | 199.9 | 206.5 | ||||
| HKD080C | 8 | 9 | 8.37 | 8.63 | 25830 | 11200 | 0.694 |
| 203.2 | 228.6 | 212.6 | 219.2 | ||||
| HKD090C | 9 | 10 | 9.37 | 9.63 | 28890 | 11950 | 0.78 |
| 228.6 | 254 | 238 | 244.6 | ||||
| HKD100C | 10 | 11 | 10.37 | 10.63 | 31920 | 12660 | 0.853 |
| 254 | 279.4 | 263.4 | 270 | ||||
| HKD110C | 11 | 12 | 11.37 | 11.63 | 34980 | 13340 | 0.934 |
| 279.4 | 304.8 | 288.8 | 295.4 | ||||
| HKD120C | 12 | 13 | 12.37 | 12.63 | 38010 | 13990 | 1.02 |
| 304.8 | 330.2 | 314.2 | 320.8 | ||||
| HKD140C | 14 | 15 | 14.37 | 14.63 | 44090 | 15230 | 1.24 |
| 355.6 | 381 | 365 | 371.6 | ||||
| HKD160C | 16 | 17 | 16.37 | 16.63 | 50180 | 16390 | 1.41 |
| 406.4 | 431.8 | 415.8 | 422.4 | ||||
| HKD180C | 18 | 19 | 18.37 | 18.63 | 56230 | 17480 | 1.58 |
| 457.2 | 482.6 | 466.6 | 473.2 | ||||
| HKD200C | 20 | 21 | 20.37 | 20.63 | 62320 | 18510 | 1.75 |
| 508 | 533.4 | 517.4 | 524 | ||||
| OPEN -- Radial Contact - HKF series | |||||||
| Part number | Dimension (inch/mm) | Basic Cap.（N） | Weight（Kg） | ||||
| d | D | L1 | L2 | Cor | Cr | ||
| HKF040C | 4 | 5.5 | 4.555 | 4.945 | 23830 | 15820 | 0.875 |
| 101.6 | 139.7 | 115.7 | 125.6 | ||||
| HKF042C | 4.25 | 5.75 | 4.805 | 5.195 | 25070 | 16250 | 0.93 |
| 107.95 | 146.05 | 122 | 132 | ||||
| HKF045C | 4.5 | 6 | 5.055 | 5.445 | 26360 | 16670 | 0.975 |
| 114.3 | 152.4 | 128.4 | 138.3 | ||||
| HKF047C | 4.75 | 6.25 | 5.305 | 5.695 | 27600 | 17080 | 1.04 |
| 120.65 | 158.75 | 134.7 | 144.7 | ||||
| HKF050C | 5 | 6.5 | 5.555 | 5.945 | 28850 | 17500 | 1.09 |
| 127 | 165.1 | 141.1 | 151 | ||||
| HKF055C | 5.5 | 7 | 6.055 | 6.445 | 31340 | 18300 | 1.18 |
| 139.7 | 177.8 | 153.8 | 163.7 | ||||
| HKF060C | 6 | 7.5 | 6.555 | 6.945 | 33870 | 19070 | 1.24 |
| 152.4 | 190.5 | 166.5 | 176.4 | ||||
| HKF065C | 6.5 | 8 | 7.055 | 7.445 | 36360 | 19830 | 1.35 |
| 165.1 | 203.2 | 179.2 | 189.1 | ||||
| HKF070C | 7 | 8.5 | 7.555 | 7.945 | 38890 | 20570 | 1.45 |
| 177.8 | 215.9 | 191.9 | 201.8 | ||||
| HKF075C | 7.5 | 9 | 8.055 | 8.445 | 41380 | 21300 | 1.56 |
| 190.5 | 228.6 | 204.6 | 214.5 | ||||
| HKF080C | 8 | 9.5 | 8.555 | 8.945 | 43920 | 22000 | 1.66 |
| 203.2 | 241.3 | 217.3 | 227.2 | ||||
| HKF090C | 9 | 10.5 | 9.555 | 9.945 | 48900 | 23360 | 1.81 |
| 228.6 | 266.7 | 242.7 | 252.6 | ||||
| HKF100C | 10 | 11.5 | 10.555 | 10.945 | 53920 | 24670 | 2.02 |
| 254 | 292.1 | 268.1 | 278 | ||||
| HKF110C | 11 | 12.5 | 11.555 | 11.945 | 58940 | 25930 | 2.18 |
| 279.4 | 317.5 | 293.5 | 303.4 | ||||
| HKF120C | 12 | 13.5 | 12.555 | 12.945 | 63960 | 27140 | 2.38 |
| 304.8 | 342.9 | 318.9 | 328.3 | ||||
| HKF140C | 14 | 15.5 | 14.555 | 14.945 | 74010 | 29430 | 2.72 |
| 355.6 | 393.7 | 369.7 | 379.6 | ||||
| HKF160C | 16 | 17.5 | 16.555 | 16.945 | 84010 | 31580 | 3.22 |
| 406.4 | 444.5 | 420.5 | 430.4 | ||||
| HKF180C | 18 | 19.5 | 18.555 | 18.945 | 94060 | 33590 | 3.58 |
| 457.2 | 495.3 | 471.3 | 481.2 | ||||
| HKF200C | 20 | 21.5 | 20.555 | 20.945 | 104100 | 35500 | 4.04 |
| 508 | 546.1 | 522.1 | 532 | ||||
| OPEN -- Radial Contact - HKG series | |||||||
| Part number | Dimension (inch/mm) | Basic Cap.（N） | Weight（Kg） | ||||
| d | D | L1 | L2 | Cor | Cr | ||
| HKG040C | 4 | 6 | 4.742 | 5.258 | 36490 | 26940 | 1.65 |
| 101.6 | 152.4 | 120.4 | 133.6 | ||||
| HKG042C | 4.25 | 6.25 | 4.992 | 5.508 | 36490 | 27180 | 1.75 |
| 107.95 | 158.75 | 126.8 | 139.9 | ||||
| HKG045C | 4.5 | 6.5 | 5.242 | 5.758 | 38940 | 27900 | 1.81 |
| 114.3 | 165.1 | 133.1 | 146.3 | ||||
| HKG047C | 4.75 | 6.75 | 5.492 | 6.008 | 41340 | 28840 | 1.91 |
| 120.65 | 171.45 | 139.5 | 152.6 | ||||
| HKG050C | 5 | 7 | 5.742 | 6.258 | 43780 | 29740 | 2.02 |
| 127 | 177.8 | 145.8 | 159 | ||||
| HKG055C | 5.5 | 7.5 | 6.242 | 6.758 | 46230 | 30450 | 2.17 |
| 139.7 | 190.5 | 158.5 | 171.7 | ||||
| HKG060C | 6 | 8 | 6.742 | 7.258 | 51070 | 32190 | 2.31 |
| 152.4 | 203.2 | 171.2 | 184.4 | ||||
| HKG065C | 6.5 | 8.5 | 7.242 | 7.758 | 53520 | 32860 | 2.47 |
| 165.1 | 215.9 | 183.9 | 197.1 | ||||
| HKG070C | 7 | 9 | 7.742 | 8.258 | 58360 | 34510 | 2.67 |
| 177.8 | 228.6 | 196.6 | 209.8 | ||||
| HKG075C | 7.5 | 9.5 | 8.242 | 8.758 | 60810 | 35170 | 2.83 |
| 190.5 | 241.3 | 209.3 | 222.5 | ||||
| HKG080C | 8 | 10 | 8.742 | 9.258 | 65650 | 36740 | 3 |
| 203.2 | 254 | 222 | 235.2 | ||||
| HKG090C | 9 | 11 | 9.742 | 10.258 | 72990 | 38860 | 3.3 |
| 228.6 | 279.4 | 247.4 | 260.6 | ||||
| HKG100C | 10 | 12 | 10.742 | 11.258 | 80280 | 40910 | 3.65 |
| 254 | 304.8 | 272.8 | 286 | ||||
| HKG110C | 11 | 13 | 11.742 | 12.258 | 87570 | 42870 | 3.96 |
| 279.4 | 330.2 | 11.742 | 12.258 | ||||
| HKG120C | 12 | 14 | 12.742 | 13.258 | 94860 | 44780 | 4.32 |
| 304.8 | 355.6 | 323.6 | 336.8 | ||||
| HKG140C | 14 | 16 | 14.742 | 15.258 | 109440 | 48390 | 4.96 |
| 355.6 | 406.4 | 374.4 | 387.6 | ||||
| HKG160C | 16 | 18 | 16.742 | 17.258 | 124060 | 51770 | 5.65 |
| 406.4 | 457.2 | 425.2 | 438.4 | ||||
| HKG180C | 18 | 20 | 18.742 | 19.258 | 138640 | 54970 | 6.28 |
| 457.2 | 508 | 476 | 489.2 | ||||
| HKG200C | 20 | 22 | 20.742 | 21.258 | 153220 | 57980 | 7.53 |
| 508 | 558.8 | 526.8 | 540 | ||||
| HJHA series | |||||||
| Part number | Dimension(inch/mm) | Basic Load Ratings(N) | Weight | ||||
| d | D | L1 | L2 | Cor | Cr | Kg | |
| HJHA010C | 1 | 1.375 | 1.108 | 1.274 | 1290 | 670 | 0.016 |
| 25.4 | 34.925 | 28.1 | 32.4 | ||||
| HJHA015C | 1.5 | 1.875 | 1.608 | 1.771 | 1780 | 800 | 0.024 |
| 38.1 | 47.625 | 40.8 | 45.1 | ||||
| HJA series | |||||||
| Part number | Dimension(inch/mm) | Basic Load Ratings(N) | Weight | ||||
| d | D | L1 | L2 | Cor | Cr | Kg | |
| HJA020C | 2 | 2.5 | 2.148 | 2.356 | 3020 | 1420 | 0.045 |
| 50.8 | 63.5 | 54.6 | 59.8 | ||||
| HJA025C | 2.5 | 3 | 2.648 | 2.856 | 3690 | 1600 | 0.054 |
| 63.5 | 76.2 | 62.7 | 72.5 | ||||
| HJA030C | 3 | 3.5 | 3.148 | 3.356 | 4400 | 1820 | 0.064 |
| 76.2 | 88.9 | 80 | 85.2 | ||||
| HJA035C | 3.5 | 4 | 3.648 | 3.856 | 5070 | 2000 | 0.077 |
| 88.9 | 101.6 | 92.7 | 98 | ||||
| HJA040C | 4 | 4.5 | 4.186 | 4.314 | 5730 | 2130 | 0.086 |
| 101.6 | 114.3 | 106.3 | 109.6 | ||||
| HJA042C | 4.25 | 4.75 | 4.398 | 4.606 | 6090 | 2220 | 0.091 |
| 107.95 | 120.65 | 111.7 | 117 | ||||
| HJA045C | 4.5 | 5 | 4.684 | 4.856 | 6400 | 2310 | 0.095 |
| 114.3 | 127 | 118 | 123.3 | ||||
| HJA047C | 4.75 | 5.25 | 4.898 | 5.106 | 6760 | 2400 | 0.1 |
| 120.65 | 133.35 | 124.4 | 129.7 | ||||
| HJA050C | 5 | 5.5 | 5.148 | 5.356 | 7070 | 2490 | 0.104 |
| 127 | 139.7 | 130.8 | 136 | ||||
| HJA055C | 5.5 | 6 | 5.648 | 5.856 | 7780 | 2620 | 0.113 |
| 139.7 | 152.4 | 143.5 | 148.7 | ||||
| HJA060C | 6 | 6.5 | 6.186 | 6.356 | 8450 | 2800 | 0.127 |
| 152.4 | 165.1 | 157.1 | 161.4 | ||||
| HJA065C | 6.5 | 7 | 6.686 | 6.856 | 9110 | 2930 | 0.136 |
| 165.1 | 1.778 | 169.8 | 174.1 | ||||
| HJB series | |||||||
| Part number | Dimension(inch/mm) | Basic Load Ratings(N) | Weight | ||||
| d | D | L1 | L2 | Cor | Cr | Kg | |
| HJB020C | 2 | 2.625 | 2.136 | 2.362 | 4130 | 2000 | 0.068 |
| 50.8 | 66.675 | 54.3 | 60 | ||||
| HJB025C | 2.5 | 3.125 | 2.636 | 2.862 | 5070 | 2310 | 0.086 |
| 63.5 | 79.375 | 67 | 72.7 | ||||
| HJB030C | 3 | 3.625 | 3.136 | 3.362 | 5960 | 2580 | 0.1 |
| 76.2 | 92.075 | 79.7 | 85.4 | ||||
| HJB035C | 3.5 | 4.125 | 3.636 | 3.862 | 6850 | 2800 | 0.122 |
| 88.9 | 104.775 | 92.4 | 98.1 | ||||
| HJB040C | 4 | 4.625 | 4.136 | 4.362 | 7780 | 3070 | 0.136 |
| 101.6 | 117.475 | 105 | 110.8 | ||||
| HJB042C | 4.2 | 4.875 | 4.386 | 4.662 | 8130 | 3160 | 0.141 |
| 107.95 | 123.825 | 111.4 | 118.4 | ||||
| HJB045C | 4.5 | 5.125 | 4.636 | 4.862 | 8670 | 3290 | 0.154 |
| 114.3 | 130.175 | 117.8 | 123.5 | ||||
| HJB047C | 4.75 | 5.375 | 4.886 | 5.162 | 9020 | 3380 | 0.159 |
| 120.65 | 136.525 | 124.1 | 131.1 | ||||
| HJB050C | 5 | 5.625 | 5.136 | 5.362 | 9560 | 3510 | 0.168 |
| 127 | 142.875 | 130.5 | 136.2 | ||||
| HJB055C | 5.5 | 6.125 | 5.636 | 5.862 | 10490 | 3730 | 0.181 |
| 139.7 | 155.575 | 143.2 | 148.9 | ||||
| HJB060C | 6 | 6.625 | 6.136 | 6.362 | 11380 | 3960 | 0.2 |
| 152.4 | 168.275 | 155.9 | 161.6 | ||||
| HJB065C | 6.5 | 7.125 | 6.638 | 6.862 | 12270 | 4130 | 0.213 |
| 165.1 | 180.975 | 168.6 | 174.3 | ||||
| HJU series | |||||||
| Part number | (inch/mm) Dimension | Basic Cap.N | Weight | ||||
| d | D | L1 | L2 | Cor | Cr | Kg | |
| HJU040C | 4.000 | 4.75 | 4.150 | 4.547 | 9340 | 3910 | 0.249 |
| 101.6 | 120.65 | 105.4 | 115.5 | ||||
| HJU042C | 4.250 | 5.000 | 4.4 | 4.797 | 9870 | 4090 | 0.263 |
| 107.95 | 127 | 111.76 | 121.8 | ||||
| HJU045C | 4.5 | 5.250 | 4.65 | 5.047 | 10400 | 4220 | 0.277 |
| 114.3 | 133.35 | 118.1 | 128.2 | ||||
| HJU047C | 4.750 | 5.000 | 4.9 | 5.295 | 10940 | 4360 | 0.295 |
| 120.65 | 139.7 | 124.85 | 134.5 | ||||
| HJU050C | 5.000 | 5.75 | 5.15 | 5.545 | 11510 | 4490 | 0.308 |
| 127 | 146.05 | 130.8 | 140.8 | ||||
| HJU055C | 5.5 | 6.25 | 5.56 | 6.042 | 12580 | 4800 | 0.336 |
| 139.7 | 158.75 | 143.5 | 153.5 | ||||
| HJU060C | 6 | 6.75 | 6.15 | 6.542 | 13650 | 5070 | 0.367 |
| 152.4 | 171.45 | 156.2 | 166.2 | ||||
| HJU065C | 6.5 | 7.25 | 6.65 | 7.037 | 14710 | 5330 | 0.395 |
| 165.1 | 184.15 | 168.9 | 178.7 | ||||
| HJU070C | 7 | 7.75 | 7.15 | 7.537 | 15780 | 5560 | 0.422 |
| 177.8 | 196.85 | 181.6 | 191.4 | ||||
| HJU075C | 7.5 | 8.25 | 7.65 | 8.037 | 16850 | 5820 | 0.449 |
| 190.5 | 209.55 | 194.3 | 204.1 | ||||
| HJU080C | 8 | 8.75 | 8.15 | 8.537 | 17910 | 6050 | 0.481 |
| 203.2 | 222.25 | 207 | 216.8 | ||||
| HJU090C | 9 | 9.75 | 9.15 | 9.535 | 20050 | 6530 | 0.535 |
| 228.6 | 247.65 | 232.4 | 242.2 | ||||
| HJU100C | 10 | 10.75 | 10.15 | 10.535 | 22180 | 6980 | 0.594 |
| 254 | 273.05 | 257.8 | 367.6 | ||||
| HJU110C | 11 | 11.75 | 11.15 | 11.535 | 24310 | 7420 | 0.649 |
| 279.4 | 298.45 | 283.2 | 293 | ||||
| HJU120C | 12 | 12.75 | 12.15 | 12.535 | 26450 | 7870 | 0.708 |
| 304.8 | 323.85 | 308.6 | 318.4 | ||||
| HJG series | |||||||
| Part number | (inch/mm) Dimension | Basic Cap.N | Weight | ||||
| d | D | L1 | L2 | Cor | Cr | Kg | |
| HJG120C | 12 | 14 | 12.554 | 13.602 | 94860 | 37830 | 4.218 |
| 304.8 | 355.6 | 318.9 | 345.5 | ||||
| HJG140C | 14 | 16 | 14.554 | 15.602 | 109440 | 41610 | 4.899 |
| 355.6 | 406.4 | 369.7 | 396.3 | ||||
| HJG160C | 16 | 18 | 16.554 | 17.602 | 124060 | 45250 | 5.579 |
| 406.4 | 457.2 | 420.5 | 447.1 | ||||
| HJG180C | 18 | 20 | 18.554 | 19.602 | 138640 | 48720 | 6.214 |
| 457.2 | 508 | 471.3 | 497.9 | ||||
| HJG200C | 20 | 22 | 20.554 | 21.602 | 153220 | 52100 | 7.167 |
| 508 | 558.8 | 522.1 | 548.7 | ||||
