Thin Section Deep Groove Ball Bearings

1. Feature: Type C - Thin section radial contact ball bearings were designed to save space, lower the overall weight of your designs, dramatically reduce friction, and provide excellent running accuracy ect. With thin section bearings you could downsize your design and cut manufacturing costs, without sacrificing bearing performance or life.
2. Sizes: Type C - Thin section radial contact ball bearings bore diameter ranges from 1 inch to 40 inch, cross section ranges from 0.1875 × 0.1875 inch to 1.000 × 1.000 inch. Compared to standard section bearings, thin section radial contact ball bearing with their large complements of small diameter balls provide greater stiffness and lower torque while permitting a significant reduction in weight and space.
3. Application:These advantages have found wide acceptance in many critical applications including ordnance and are os pace guidance systems, large diameter encoders and radar support systems. In some area, the bearing is required anti-friction & clean & well lubricated, then, double sealed or single deep groove bearings is optimal choice.
Send Inquiry Download

Thin Section Deep Groove Ball Bearings: A Comprehensive Guide

Thin section deep groove ball bearings are engineered for high-precision applications requiring minimal space and maximum performance. These bearings are designed with a smaller cross-section compared to standard bearings, making them ideal for applications where space is limited. Despite their thin profile, they offer high load capacity and durability, thanks to their precision engineering and advanced materials.

Key Features:

  • Compact Design: Ideal for space-constrained applications.
  • High Precision: Ensures smooth and accurate motion.
  • Versatility: Suitable for various industries and applications.

Why Choose CHG Bearing?

At CHG Bearing, we specialize in manufacturing thin section deep groove ball bearings that meet the highest standards of quality and performance. Here’s why you should consider us for your bearing needs:

  1. Customization and Solutions: We provide tailored solutions for various working conditions, ensuring optimal performance in your specific application.
  2. Industry Experience: With over 30 years of experience, we have partnered with numerous large enterprises, offering reliable and innovative solutions.
  3. Certifications and Patents: Our products are backed by more than 50 invention patents and comply with ISO9001 quality management and ISO14001 environmental management certifications.

Technical Specifications

Specification Description
Type Deep Groove Ball Bearing
Material High-grade steel or ceramic
Dimensions Customizable to meet specific needs
Load Capacity High load capacity for thin profiles
Temperature Range -40°C to +120°C
Certifications ISO9001, ISO14001

Benefits of Thin Section Deep Groove Ball Bearings

  1. Space Efficiency: The slim profile allows for more compact designs in various applications.
  2. Reduced Friction: Offers smooth and quiet operation, enhancing the overall performance of machinery.
  3. Versatility: Suitable for a wide range of industries, from aerospace to consumer electronics.

Applications

Thin section deep groove ball bearings are used in a variety of sectors, including:

  • Aerospace: Critical for high-precision applications like aircraft and satellites.

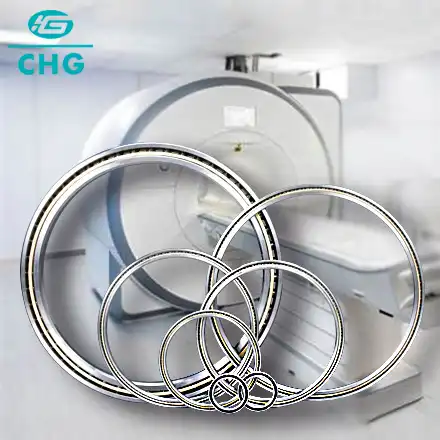

  • Medical Equipment: Essential for surgical instruments and diagnostic devices requiring high reliability.

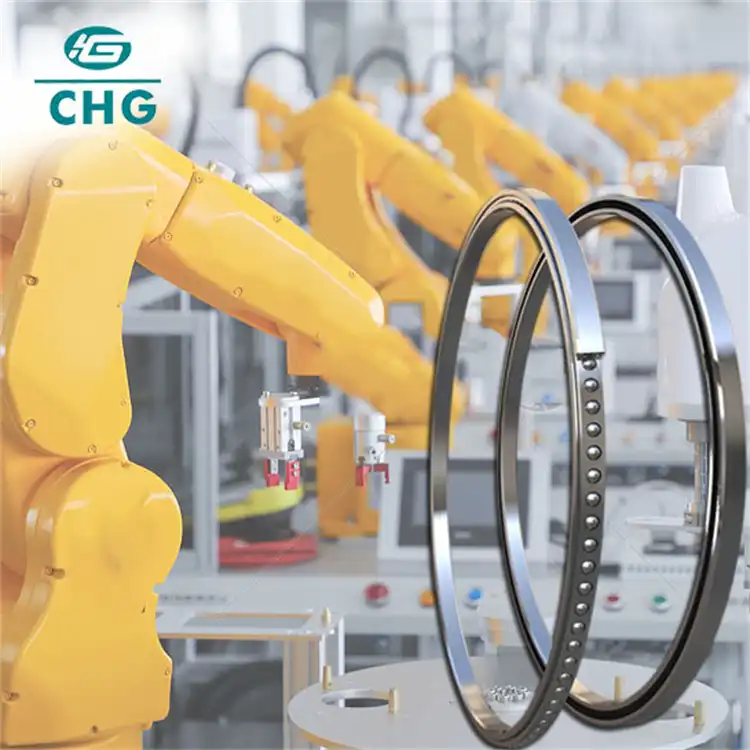

  • Automation and Robotics: Ideal for industrial robots and automation equipment where lightweight and efficiency are crucial.
  • Automotive Industry: Used in electric vehicles and high-performance automotive components.
  • Consumer Electronics: Applied in motion systems for precision instruments and high-end electronic products.

Installation Guide

  1. Preparation: Ensure the bearing and housing are clean and free from contaminants.
  2. Alignment: Align the bearing properly with the housing to avoid misalignment issues.
  3. Insertion: Gently press the bearing into the housing using appropriate tools to prevent damage.
  4. Securing: Secure the bearing in place with appropriate fasteners or locking mechanisms.

Maintenance and Care

  • Regular Inspection: Check for signs of wear or damage periodically.
  • Lubrication: Use the recommended lubricant to ensure smooth operation and reduce friction.
  • Cleaning: Keep the bearings clean and free from debris to maintain performance.

FAQ

1. What makes thin section deep groove ball bearings different from regular bearings?
They have a smaller cross-section, making them ideal for compact applications while still providing high load capacity.

2. Can thin section bearings handle high loads?
Yes, despite their slim design, they are engineered to handle significant loads due to their precision and material strength.

3. How do I choose the right thin section bearing for my application?
Consider factors such as load capacity, operating environment, and space constraints. Consulting with a bearing expert can help you select the most suitable option.

Customer Reviews

  • John D.: “CHG Bearing's thin section bearings are exceptional. They fit perfectly in our space-constrained equipment and perform flawlessly.”
  • Lisa M.: “The quality and reliability of these bearings are top-notch. Our machinery runs smoother and more efficiently thanks to CHG Bearing.”

Contact Us

For more information about thin section deep groove ball bearings or to request a quote, please reach out to us at sale@chg-bearing.com. We are here to assist you with your bearing needs and provide expert guidance.
