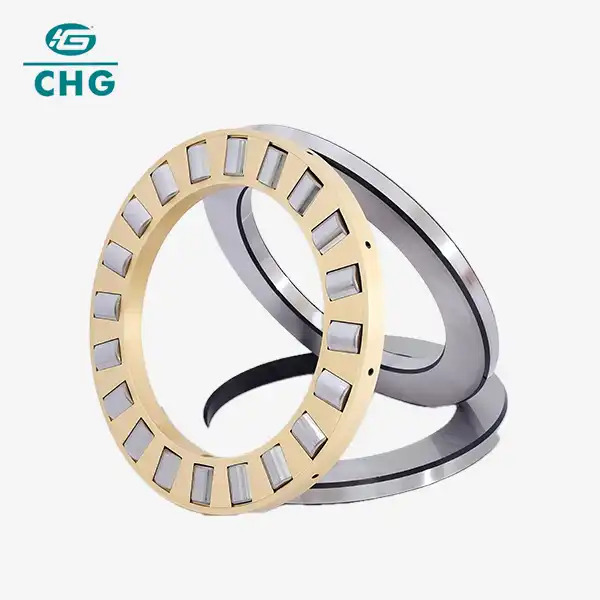

Thrust Bearing

1.Type:Cylindrical roller thrust bearings, Tapered roller thrust bearings, Spherical roller thrust bearings,
screw-down-bearings
2. Sizes： Inner Diameter; 200-380mm
Outer Diameter: 400-670mm Weight: 75-274kg
3. Feature:Cylindrical roller thrust bearings are separable. They only carry axial loads in one direction and slight shock loads, but their loading capacity is much higher than thrust ball bearings with same dimensions. They can limit axial displacement of shafts or housing in one direction, so can be as axial locating bearings in one direction. the slippage will formed on the raceways because of the linear velocity differences of two ends of rollers while rolling. So the Limiting speed of these bearings is lower than thrust ball bearings, and they are usually applied to low speed applications.

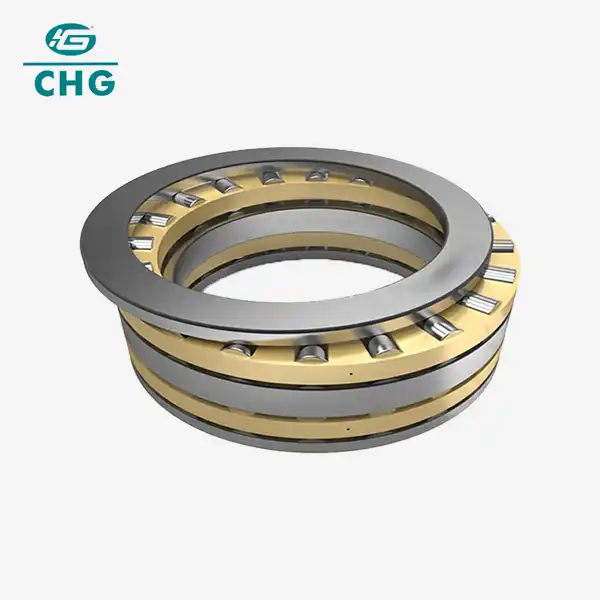

Tapered roller thrust bearings can only carry axial loads and limit axial displacement in one direction, so they can be used as axial locating bearings in one direction. Comparing with cylindrical roller thrust bearings, their loading capacity is higher, relative slippage and limiting speed are lower.
4. Cage: Metal machined solid cages are used for cylindrical roller thrust bearings which are standard design, but otehr cages also can be provided according to customers.
Steel or brass cages are used in tapered roller thrust bearings
5. Application:Cylindrical roller thrust bearings mainly used in heavy machine tools, large power gear boxed for ships, oil rigs, vertical machines, etc.
Tapered roller thrust bearing are widely used in construction machinery, automotives, generating equipments, etc.
6. Material: GCr15/GCr15SiMn/G20Cr2Ni4A

Send Inquiry Download

What is a Thrust Bearing?

A thrust bearing is a critical component designed to support axial loads in machinery. Unlike radial bearings, which handle loads perpendicular to the shaft, it manage forces parallel to the shaft's axis. These bearings are essential in various applications where high thrust loads are present, such as in automotive transmissions, rotating machinery, and industrial equipment. By providing smooth and reliable operation, it help in minimizing wear and extending the lifespan of machinery.

Why Choose CHG Bearing for Your Thrust Bearing Needs?

CHG Bearing is a renowned manufacturer and supplier of high-quality product, offering tailored solutions for a wide range of industrial applications. Here’s why our thrust bearings stand out:

Customization and Solutions: We provide customized it to meet the specific needs of different working conditions. Whether you need bearings for high temperatures, heavy loads, or specific materials, we have the expertise to deliver.
Extensive Experience: With over 30 years in the industry, CHG Bearing has collaborated with numerous large-scale companies, ensuring our bearings meet the highest standards of quality and performance.
Innovative Excellence: Our company holds more than 50 invention patents and is certified under ISO9001 for quality management and ISO14001 for environmental management. These certifications reflect our commitment to quality and innovation.

Feel free to contact us at [sale@chg-bearing.com] for more information or to discuss your specific requirements.

Technical Specifications

Specification	Details
Load Capacity	Up to 500 kN
Operating Temperature	-40°C to +150°C
Materials	Chrome Steel, Stainless Steel, Ceramic
Lubrication Type	Grease, Oil
Dimensions	Customizable based on application
Tolerance	High Precision (±0.01 mm)

Thrust Bearings and Their Benefits

Thrust bearings offer several advantages:

High Load Capacity: Designed to handle substantial axial loads, making them ideal for heavy-duty applications.
Reduced Friction: Smooth operation reduces friction, enhancing performance and efficiency.
Increased Reliability: High precision and durability lead to extended service life and lower maintenance costs.
Versatility: Suitable for various applications, from automotive to industrial machinery.

Applications

They are used in numerous industries and applications:

Metallurgical Industry: Essential in large rotating equipment such as blast furnaces and rolling mills.
Mining Machinery: Found in jaw crushers, impact crushers, and vibrating screens where high loads are common.
Automotive: Used in gearboxes and clutches to support axial forces.
Industrial Equipment: Key components in turbines, pumps, and compressors.

Installation Guide

Proper installation ensures optimal performance of products. Follow these steps:

Preparation: Clean the installation area and ensure all parts are free of contaminants.
Alignment: Align the bearing accurately to prevent uneven loading.
Lubrication: Apply the recommended lubrication to reduce friction and wear.
Mounting: Carefully mount the bearing, ensuring it is seated correctly and securely.
Inspection: Check for proper operation and alignment post-installation.

Maintenance and Care

To ensure the longevity of products, follow these maintenance tips:

Regular Lubrication: Keep bearings well-lubricated to prevent friction and overheating.
Periodic Inspections: Regularly inspect for signs of wear, damage, or misalignment.
Cleanliness: Maintain a clean environment to avoid contamination.
Monitor Performance: Keep track of operating conditions and adjust as necessary.

FAQ

Q: What types of this bearings are available?
A: It come in various types, including ball , roller , and needle , each suited for different load capacities and operating conditions.

Q: How do I choose the right thrust bearing for my application?
A: Consider factors such as load capacity, operating temperature, material, and lubrication requirements. Consulting with a bearing expert can also help in selecting the most suitable bearing.

Q: What is the typical lifespan of a thrust bearing?
A: The lifespan depends on the application, operating conditions, and maintenance practices. Regular maintenance and proper installation can significantly extend the bearing's life.

Customer Reviews

John D., Production Manager:
"CHG Bearing's have proven to be incredibly reliable and durable. Their customization options have been a game-changer for our equipment!"

Sara L., Technical Engineer:
"We appreciate the fast response and high-quality bearings from CHG Bearing. Their expertise and support have made a significant difference in our operations."

Contact Us

For more information or to request a quote, please contact us at [sale@chg-bearing.com]. Our team is here to assist you with all your thrust bearing needs.
