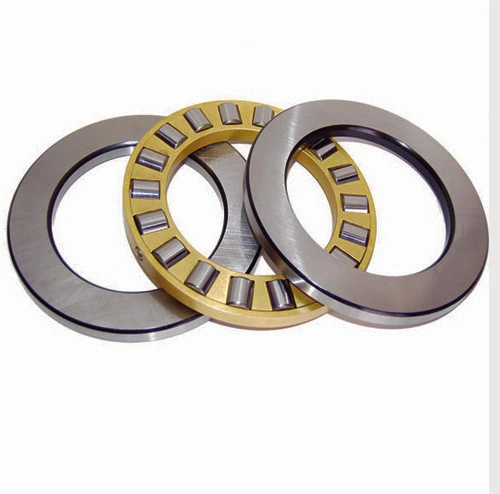

Cylindrical Thrust Roller Bearings

1.Type:Cylindrical roller thrust bearings, Tapered roller thrust bearings, Spherical roller thrust bearings,
screw-down-bearings
2. Sizes： Inner Diameter; 200-380mm
Outer Diameter: 400-670mm Weight: 75-274kg
3. Feature:Cylindrical roller thrust bearings are separable. They only carry axial loads in one direction and slight shock loads, but their loading capacity is much higher than thrust ball bearings with same dimensions. They can limit axial displacement of shafts or housing in one direction, so can be as axial locating bearings in one direction. the slippage will formed on the raceways because of the linear velocity differences of two ends of rollers while rolling. So the Limiting speed of these bearings is lower than thrust ball bearings, and they are usually applied to low speed applications.
Tapered roller thrust bearings can only carry axial loads and limit axial displacement in one direction, so they can be used as axial locating bearings in one direction. Comparing with cylindrical roller thrust bearings, their loading capacity is higher, relative slippage and limiting speed are lower.
4. Cage: Metal machined solid cages are used for cylindrical roller thrust bearings which are standard design, but otehr cages also can be provided according to customers.
Steel or brass cages are used in tapered roller thrust bearings
5. Application:Cylindrical roller thrust bearings mainly used in heavy machine tools, large power gear boxed for ships, oil rigs, vertical machines, etc.
Tapered roller thrust bearing are widely used in construction machinery, automotives, generating equipments, etc.
6. Material: GCr15/GCr15SiMn/G20Cr2Ni4A

Send Inquiry Download

What are Cylindrical Thrust Roller Bearings?

Cylindrical Thrust Roller Bearings are specialized components designed to support axial loads while providing high rigidity and stability. Unlike traditional bearings, these are engineered to handle heavy loads and withstand harsh operating conditions, making them ideal for applications in the metallurgical and mining industries. Their design features a series of cylindrical rollers arranged in a single row, which helps distribute the load evenly and reduce friction.

Key Features:

Axial Load Capacity: Designed to handle substantial axial loads.
High Rigidity: Ensures stability and precision under heavy loads.
Robust Design: Built to withstand harsh environments and high temperatures.

CHG Bearing: Your Trusted Cylindrical Thrust Roller Bearings Manufacturer

At CHG Bearing, we pride ourselves on being a leading manufacturer and supplier of products. Our expertise spans over 30 years, during which we have developed a reputation for quality and innovation in the bearing industry. We offer customized solutions tailored to different working conditions and have established partnerships with many large companies globally.

Why Choose CHG Bearing?

Customization and Solutions: We provide tailored bearings to meet specific operational requirements, ensuring optimal performance in diverse applications.
Industry Experience: With three decades of experience, we bring deep industry knowledge and expertise to every product we deliver.
Innovation and Certifications: Our commitment to innovation is reflected in over 50 invention patents. We adhere to the highest standards, holding ISO9001 quality management and ISO14001 environmental management certifications.

For more information or to discuss your specific needs, feel free to contact us at sale@chg-bearing.com.

Technical Specifications

Specification	Details
Type	Cylindrical Thrust Roller Bearing
Load Capacity	High axial load capacity
Material	High-quality steel or alloy
Design	Single row of cylindrical rollers
Temperature Range	Suitable for high-temperature environments
Certifications	ISO9001, ISO14001

Benefits of Cylindrical Thrust Roller Bearings

Enhanced Load Bearing: Designed to support heavy axial loads, these bearings improve the reliability and efficiency of rotating equipment.
Improved Equipment Stability: Their high rigidity reduces vibrations and maintains equipment stability, leading to smoother operation.
Durability in Harsh Conditions: Built to endure extreme temperatures and high-stress environments, extending the lifespan of your equipment.
Low Maintenance: Reduced need for frequent replacements lowers maintenance costs and downtime.

Applications

Cylindrical Thrust Roller Bearings are used in a variety of applications, including:

Metallurgical Industry: Blast furnaces, rolling mills, and steelmaking equipment.
Mining Machinery: Jaw crushers, impact crushers, vibrating screens, and feeders.
Industrial Equipment: Large rotating equipment requiring high load support.

Installation Guide

Proper installation is crucial for the optimal performance of them. Follow these steps to ensure correct installation:

Preparation: Clean the bearing and housing thoroughly to remove any debris or contaminants.
Alignment: Ensure proper alignment of the bearing with the shaft and housing to avoid misalignment issues.
Mounting: Gently press the bearing into place using appropriate tools to avoid damage.
Lubrication: Apply the recommended lubricant to ensure smooth operation and reduce friction.

Maintenance and Care

To extend the life of your products, adhere to the following maintenance practices:

Regular Inspection: Check for signs of wear or damage, such as unusual noises or vibrations.
Lubrication: Ensure bearings are adequately lubricated according to the manufacturer’s recommendations.
Cleanliness: Keep the bearings and surrounding area clean to prevent contamination.
Prompt Replacement: Replace worn or damaged bearings promptly to avoid further equipment issues.

FAQ

Q: What is the difference between Cylindrical Thrust Roller Bearings and other types of bearings? A: They are specifically designed to handle axial loads and provide high rigidity, unlike other bearings which may be better suited for radial loads.

Q: Can Cylindrical Thrust Roller Bearings be customized? A: Yes, we offer customization options to meet specific operational requirements, including size, material, and lubrication methods.

Q: How do I know if my bearing needs replacement? A: Look for signs such as unusual noises, vibrations, or reduced performance. Regular inspections can help identify issues early.

Customer Reviews

John D., Production Manager "CHG Bearing’s have significantly improved the reliability of our equipment. Their high quality and durability are unmatched."

Sara W., Technical Engineer "The customization options provided by CHG Bearing were exactly what we needed for our project. Excellent service and support throughout the process."
