What are Double Row Tapered Roller Bearings Used For?

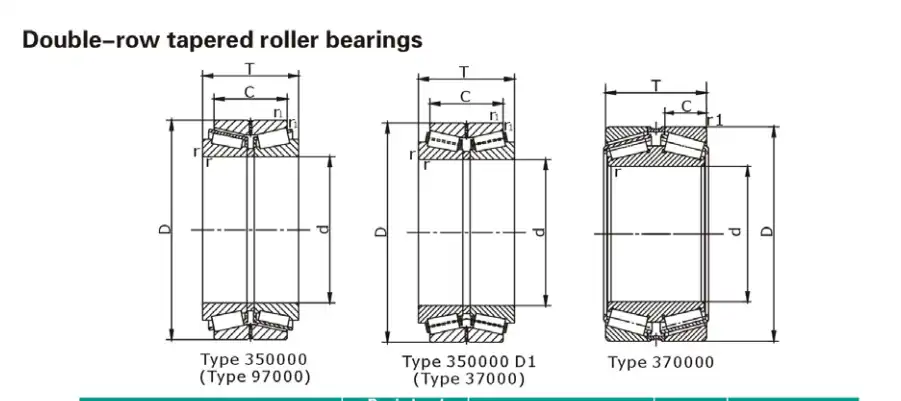

Double row tapered roller bearings are specialized mechanical components designed to handle heavy radial and axial loads in various industrial applications. These bearings consist of two rows of tapered rollers arranged in opposite directions, allowing them to support forces from multiple angles simultaneously. Their unique design makes them ideal for use in demanding environments where high load capacity, precision, and durability are essential.

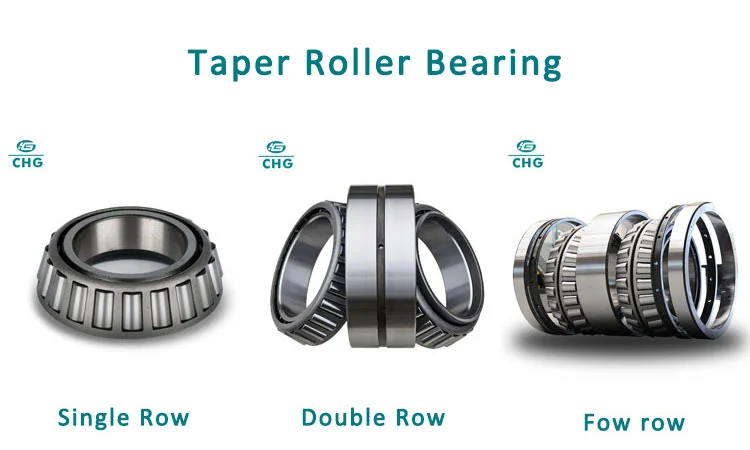

How do double row tapered roller bearings differ from single row bearings?



Double row tapered roller bearings offer several advantages over their single row counterparts, making them the preferred choice for many challenging applications. The primary difference lies in their load-bearing capacity and stability. While single row bearings excel in handling either radial or axial loads, double row bearings can efficiently manage both types of forces simultaneously.



The dual-row configuration allows for a more even distribution of stress across the bearing surface, reducing wear and extending the overall lifespan of the component. This design also provides greater rigidity and resistance to misalignment, which is crucial in applications where precision is paramount.



Another key distinction is the ability of double row bearings to handle moment loads, which are forces that cause a rotating shaft to bend. The opposing arrangement of the tapered rollers creates a self-aligning effect, helping to maintain proper shaft alignment even under heavy or uneven loading conditions.



In terms of speed capabilities, double row tapered roller bearings generally offer higher speed ratings compared to single row variants. This is due to their improved stability and reduced friction, allowing for smoother operation at higher rotational speeds.



Maintenance requirements also differ between single and double row bearings. While both types require regular lubrication, double row bearings often have more complex sealing systems to protect against contamination. This can result in longer service intervals and reduced downtime for equipment using these bearings.



It's worth noting that the increased capabilities of double row tapered roller bearings often come with a higher initial cost compared to single row options. However, in applications where their unique properties are required, the long-term benefits in terms of performance, reliability, and reduced maintenance often outweigh the higher upfront investment.

What industries commonly use double row tapered roller bearings?



Double row tapered roller bearings find applications across a wide range of industries due to their exceptional load-bearing capabilities and durability. Their versatility makes them indispensable in many sectors where heavy machinery and precision equipment are used.



In the automotive industry, these bearings are commonly used in wheel hubs, transmissions, and differentials. They provide the necessary support for the high radial and axial loads experienced in vehicle operations, especially in trucks and heavy-duty vehicles. The ability to handle both types of loads simultaneously makes them ideal for steering systems and drivetrain components where forces come from multiple directions.



The aerospace sector also relies heavily on double row tapered roller bearings. They are used in aircraft engines, landing gear assemblies, and various other critical components. The high-precision requirements and extreme operating conditions in aerospace applications make these bearings an excellent choice due to their stability and reliability.



In the industrial machinery sector, double row tapered roller bearings play a crucial role in equipment such as rolling mills, paper machines, and heavy-duty gearboxes. These applications often involve high loads, frequent starts and stops, and exposure to harsh environmental conditions. The robust design of double row bearings helps ensure smooth operation and extended equipment life in these demanding settings.



The mining and construction industries utilize these bearings in equipment like excavators, conveyors, and crushers. The ability to withstand heavy loads and shock loads is particularly valuable in these applications, where machinery is subjected to extreme forces and challenging operating environments.



In the renewable energy sector, particularly in wind turbines, double row tapered roller bearings are essential components. They are used in the main shaft bearings and gearboxes of wind turbines, where they must withstand varying loads and weather conditions while ensuring efficient power generation.



The railway industry also benefits from the use of these bearings in wheel sets and traction motors. The high load capacity and ability to handle both radial and axial forces make them ideal for the demanding conditions experienced in rail transport.



In the marine industry, double row tapered roller bearings are used in propulsion systems, steering gear, and various deck machinery. Their resistance to corrosion and ability to operate in wet conditions make them well-suited for maritime applications.



The oil and gas industry employs these bearings in drilling equipment, pumps, and compressors. The extreme loads and harsh operating conditions in this sector require bearings that can deliver reliable performance under pressure.

What are the maintenance requirements for double row tapered roller bearings?



Proper maintenance of double row tapered roller bearings is crucial for ensuring their longevity and optimal performance. While these bearings are designed to withstand heavy loads and challenging conditions, regular care and attention are necessary to prevent premature failure and maintain operational efficiency.



One of the most critical aspects of maintaining double row tapered roller bearings is proper lubrication. The lubricant serves multiple purposes: it reduces friction between the rolling elements and raceways, dissipates heat, and helps protect against corrosion. The choice of lubricant depends on factors such as operating speed, load, temperature, and environmental conditions. In most cases, high-quality grease is used, but in some high-speed applications, oil lubrication may be preferred.



Regular relubrication is essential to replenish the lubricant and remove any contaminants that may have accumulated. The frequency of relubrication depends on the specific application and operating conditions. In some cases, automatic lubrication systems may be employed to ensure consistent and timely lubrication.



Monitoring the condition of the lubricant is also important. This can involve periodic sampling and analysis to check for signs of degradation or contamination. If the lubricant shows signs of breakdown or contains excessive debris, it may be necessary to clean the bearing and replace the lubricant entirely.



Proper sealing is another crucial aspect of bearing maintenance. Double row tapered roller bearings often come with integrated seals or shields to prevent contaminants from entering the bearing and to retain the lubricant. However, these seals can wear over time and may need to be replaced. Regular inspection of the seals and replacing them when necessary can significantly extend the life of the bearing.



Alignment is a critical factor in the performance and longevity of double row tapered roller bearings. Misalignment can lead to uneven load distribution, increased wear, and premature failure. Regular checks of shaft and housing alignment, along with any necessary adjustments, should be part of the maintenance routine.



Temperature monitoring is also important. Abnormal temperature increases can indicate problems such as inadequate lubrication, overloading, or misalignment. Many modern applications incorporate temperature sensors to provide early warning of potential issues.



Vibration analysis is a powerful tool for predictive maintenance of bearings. Regular vibration measurements can detect early signs of wear, damage, or other issues before they lead to catastrophic failure. This allows for planned maintenance interventions rather than unexpected breakdowns.



In applications where bearings are exposed to harsh environments or contaminants, regular cleaning may be necessary. This can involve careful disassembly, cleaning of all components, and reassembly with fresh lubricant. However, this should only be done by trained personnel to avoid damaging the bearing or compromising its precision.



It's important to note that while double row tapered roller bearings are designed for long service life, they are not indefinitely durable. Regular inspection and replacement schedules should be established based on the specific application and operating conditions. Factors such as load history, speed, and environmental conditions should be considered when determining the appropriate replacement interval.



Training maintenance personnel in proper handling and installation techniques is crucial. Improper installation can lead to premature failure, even in high-quality bearings. This includes using the correct tools, following proper mounting procedures, and adhering to recommended torque specifications.



By following these maintenance practices, users can maximize the performance and lifespan of double row tapered roller bearings, ensuring reliable operation and minimizing costly downtime in critical applications across various industries.
