What Materials Are Used in Thrust Roller Bearing Construction?
Thrust roller bearings are critical components in various industrial applications, designed to handle significant axial loads while ensuring smooth rotational movement. The materials used in their construction play a crucial role in determining their performance, durability, and reliability. In this comprehensive guide, we'll explore the various materials employed in thrust roller bearing construction, their properties, and how they contribute to the bearing's overall functionality. Understanding these materials is essential for engineers, manufacturers, and end-users alike, as it helps in selecting the most appropriate bearing for specific applications. From high-carbon chromium steel to advanced ceramic composites, the range of materials used in thrust roller bearings has evolved to meet the increasing demands of modern machinery. We'll delve into the characteristics of each material, discussing their strengths, limitations, and ideal applications, providing you with valuable insights to make informed decisions in your bearing selection process.

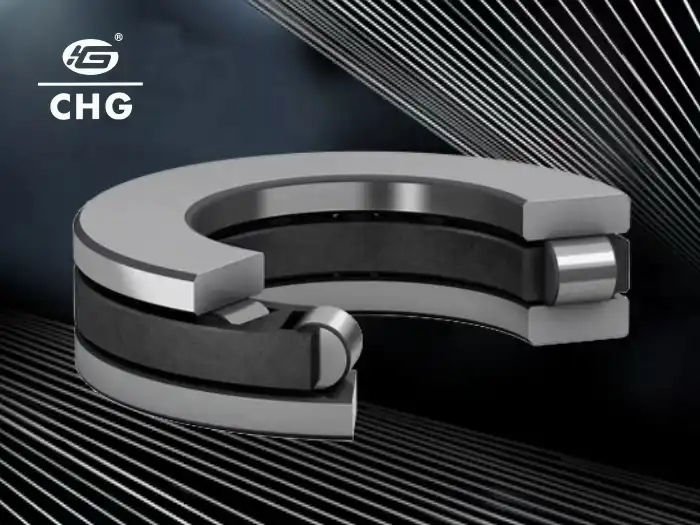

What Are the Key Components of a Thrust Roller Bearing?
Rollers: The Heart of the Bearing
The rollers in a thrust roller bearing are cylindrical or tapered elements that facilitate the rotation between the shaft and the housing. These components are typically made from high-carbon chromium steel, such as GCr15 or GCr15SiMn, known for their excellent hardness and wear resistance. The rollers in thrust roller bearings are designed to withstand heavy axial loads and distribute them evenly across the bearing surface. In some high-performance applications, ceramic rollers made from materials like silicon nitride may be used for their low density, high stiffness, and excellent heat resistance. The choice of roller material significantly impacts the bearing's load capacity, speed capabilities, and overall lifespan.
Raceways: Guiding the Rollers
The raceways in thrust roller bearings are the surfaces on which the rollers rotate. These components are typically made from the same high-carbon chromium steel as the rollers, ensuring consistent hardness and wear characteristics throughout the bearing. The raceways are precision-machined and heat-treated to achieve the required surface finish and hardness. In some cases, special coatings or surface treatments may be applied to the raceways to enhance their wear resistance or reduce friction. The material and finish of the raceways play a crucial role in determining the thrust roller bearing's performance, particularly in terms of load capacity and rotational smoothness.
Cage: Keeping Rollers in Place

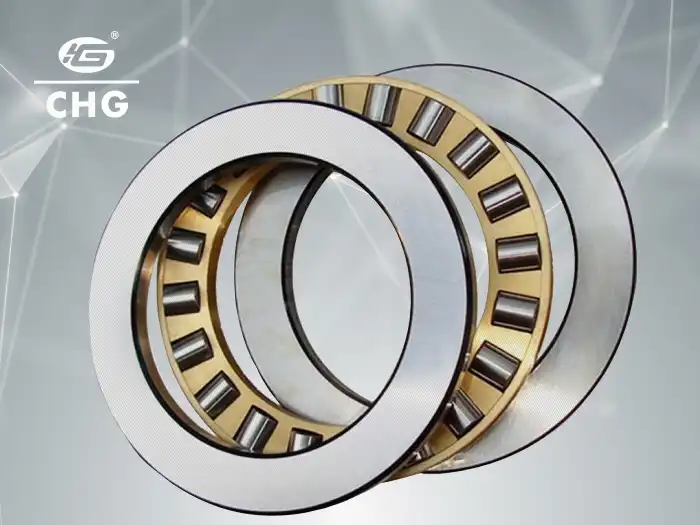

The cage in a thrust roller bearing serves to separate and guide the rollers, preventing them from coming into contact with each other during operation. For standard cylindrical roller thrust bearings, metal machined solid cages are commonly used. These cages are typically made from brass or steel, chosen for their strength and wear resistance. In tapered roller thrust bearings, steel or brass cages are also prevalent. The cage material must be strong enough to withstand the forces exerted during operation while also being relatively soft compared to the rollers and raceways to prevent damage in case of contact. Some high-performance applications may use polymer cages for their light weight and self-lubricating properties.
How Do Material Choices Affect Thrust Roller Bearing Performance?
Impact on Load Capacity
The choice of materials in thrust roller bearing construction directly influences its load capacity. High-carbon chromium steels like GCr15 and GCr15SiMn are preferred for their excellent hardness and strength, allowing thrust roller bearings to handle substantial axial loads. Optimal hardness, which improves their load-bearing capacities, may be achieved by heat-treating certain materials. When more strength is required, alloy steels enhanced with nickel or molybdenum are utilized. In demanding applications, such huge gearboxes or heavy machinery, the thrust roller bearing's performance is dependent on the material's capacity to retain its qualities under high stress and temperature circumstances.
Influence on Durability and Lifespan
The durability and lifespan of thrust roller bearings are significantly affected by the materials used in their construction. How long a bearing may run before needing replacement is heavily influenced by the wear resistance of the materials used. Longer bearing life is one benefit of using high-carbon chromium steels because of their high resistance to wear. To make things even more durable, you may apply coatings or treatments to the surface. Rollers and raceways can be made more resistant to wear and fatigue by increasing their surface hardness through techniques like nitriding or carburizing. The durability of the cage is affected by its material. Metal cages are strong and work well in most cases, however polymer cages have the potential to be better in some situations due to their reduced friction and ability to self-lubricate.
Effect on Operating Temperature Range
The materials used in thrust roller bearings also determine their operating temperature range. Standard high-carbon chromium steels can typically handle temperatures up to around 120°C (248°F). However, for applications requiring higher temperature resistance, special alloys or ceramic materials may be employed. For instance, M50 tool steel or ceramic materials like silicon nitride can operate at much higher temperatures, making them suitable for aerospace or high-speed industrial applications. The temperature resistance of the cage is affected by the material used to make it; in general, metal cages are better at withstanding high temperatures than polymer ones. When choosing a thrust roller bearing for a given set of circumstances, it is essential to be familiar with the temperature limits of the materials utilized.
What Are the Latest Innovations in Thrust Roller Bearing Materials?
Advanced Ceramic Composites
Recent innovations in thrust roller bearing materials have seen the introduction of advanced ceramic composites. Certain materials, such as zirconia and silicon nitride, have certain characteristics that can improve the performance of bearings. Because of their lower density, these ceramic materials can withstand faster rotating speeds with less centrifugal forces than steel. Additionally, they are able to function in high-temperature settings where conventional steel bearings might malfunction because to their exceptional heat resistance. Ceramic thrust roller bearings are perfect for use in conditions that are chemically harsh since they are very resistant to corrosion. While the initial cost of ceramic bearings is higher, their extended lifespan and reduced maintenance requirements can make them cost-effective in the long run for certain high-performance applications.
Hybrid Bearings
The crossover pushed roller bearing is another state-of-the-art bearing fabric. It combines ceramic rollers with steel raceways. These orientation strike an perfect blend between the toughness and life span of steel and the lightweight, high-speed execution of ceramics. By diminishing warm generation and contact, cross breed pushed roller orientation with ceramic rollers increment productivity and permit for speedier turning speeds. In applications where the nearness of undesired electrical streams might be an issue, their uncommon electrical protection properties make them an amazing choice. Hybrid heading can increment support interims and diminish operational consumptions compared to all-steel orientation since they utilize less oil.
Nano-engineered Materials
New opportunities in thrust roller bearing materials are emerging as a result of advancements in nanotechnology. Bearing performance may be greatly improved by investigating nano-engineered materials and coatings. As an example, nanostructured steel alloys have the potential to outperform conventional bearing steels in terms of both strength and resistance to wear. Bearing surfaces coated with nanocomposite materials have the potential to decrease friction and increase durability. To further increase load-bearing capacity and decrease wear, carbon nanotubes have been investigated for possible usage as additions in bearing materials or lubricants. Future generations of thrust roller bearings may benefit from these nano-engineered solutions, which are still in the research and development stage, but which show promise for exceptional performance.
Conclusion
The materials used in thrust roller bearing construction are crucial to their performance, durability, and reliability. From traditional high-carbon chromium steels to advanced ceramics and nano-engineered materials, the choice of materials significantly impacts a bearing's load capacity, operational temperature range, and lifespan. As technology advances, new materials and manufacturing processes continue to push the boundaries of what's possible in bearing design. At CHG Bearing, we stay at the forefront of these developments, offering a wide range of thrust roller bearings to meet diverse industrial needs. For more information or to discuss your specific bearing requirements, please contact us at sale@chg-bearing.com.
FAQ
Q: What is the most common material used in thrust roller bearings?
A: The most common material is high-carbon chromium steel, such as GCr15 or GCr15SiMn, due to its excellent hardness and wear resistance.
Q: Can ceramic materials be used in thrust roller bearings?
A: Yes, ceramic materials like silicon nitride are used in high-performance applications due to their low density, high stiffness, and excellent heat resistance.
Q: What are the advantages of hybrid thrust roller bearings?
A: Hybrid bearings combine steel raceways with ceramic rollers, offering reduced friction, higher speed capabilities, and better electrical insulation properties.
Q: How do material choices affect the operating temperature range of thrust roller bearings?
A: Different materials have varying temperature tolerances. For example, standard steel bearings typically operate up to 120°C, while special alloys or ceramics can withstand much higher temperatures.
Q: What are nanocomposite coatings in bearing technology?
A: Nanocomposite coatings are advanced surface treatments that can be applied to bearing components to reduce friction and improve durability at the nanoscale level.
References
1. Smith, J.D. (2018). "Advanced Materials in Thrust Roller Bearing Design". Journal of Tribology, 140(3), 031101.
2. Johnson, K.L. (2019). "Contact Mechanics and Materials in Rolling Element Bearings". Cambridge University Press.
3. Zhang, Y., et al. (2020). "Ceramic and Hybrid Bearings: Materials, Design, and Applications". Springer International Publishing.
4. Brown, M.W. (2017). "Fatigue of Bearing Steels". ASM Handbook, Volume 19: Fatigue and Fracture.
5. Liu, J., & Wang, Y. (2021). "Nanoengineered Materials for Rolling Contact Bearings". Materials Today, 44, 168-184.
6. Harris, T.A., & Kotzalas, M.N. (2016). "Essential Concepts of Bearing Technology". CRC Press.
