Four Point Contact Ball Slewing Bearing

1. Type: External gear, Internal gear, No gear
2. Size: For No Gear Type
Inner Diameter: 260-4272mm ,Outer Diameter: 480-4726mm
Weight: 55-4000kg
For Internal Gear Type
Inner Diameter: 458-4272mm ,Outer Diameter:662-4726mm
Weight: 94-4000kg
For External Gear Type
Inner Diameter: 470-4272mm ,Outer Diameter: 694-4726mm
Weight: 93.1-4000kg
3. Feature: Four-point contact ball slewing bearings contact angle is usually 35°. If there is only a radial load, each steel ball contacts the raceway at four points. If there is only a unidirectional axial load, each steel ball contacts the raceway at two points. It can bear axial loads in two directions as well as a certain eccentric load, i.e. torque. Such kind of bearing has features and properties of both single-row and double-row angular contact ball bearings. If it is used in a high-speed scenario, two-point contact must be ensured for its normal working.
4. Material:50Mn/42CrMo/S48C/42CrMo4/16Mn

Send Inquiry Download

Product Details

Welcome to the ultimate guide on Four Point Contact Ball Slewing Bearings. Whether you're in construction, lifting machinery, wind power generation, or any other sector that requires precision rotation and load-bearing capabilities, this comprehensive product page is designed to help you understand the benefits and applications of the slewing bearings. As a professional in the industry, you'll find all the information you need to make an informed decision for your equipment.

What is a Four Point Contact Ball Slewing Bearing?

A Four Point Contact Ball Slewing Bearing is a type of bearing that allows for smooth rotation between two components while supporting high axial, radial, and tilting loads. The design includes four points of contact where balls touch the raceways, which helps distribute loads evenly and ensures stability and longevity. This bearing is crucial in applications requiring precise rotational movement and high load capacities.

Key Features:

High Load Capacity: Supports substantial axial and radial loads.
Precision Rotation: Ensures smooth and accurate movement.
Durability: Designed for long-lasting performance in various working conditions.
Versatility: Suitable for a wide range of applications, from construction machinery to medical equipment.

Why Choose CHG Bearing?

Customized Solutions

At CHG Bearing, we understand that every application is unique. We offer tailored solutions to meet the specific requirements of different working conditions. Our team of experts is dedicated to providing bearings that fit your exact needs.

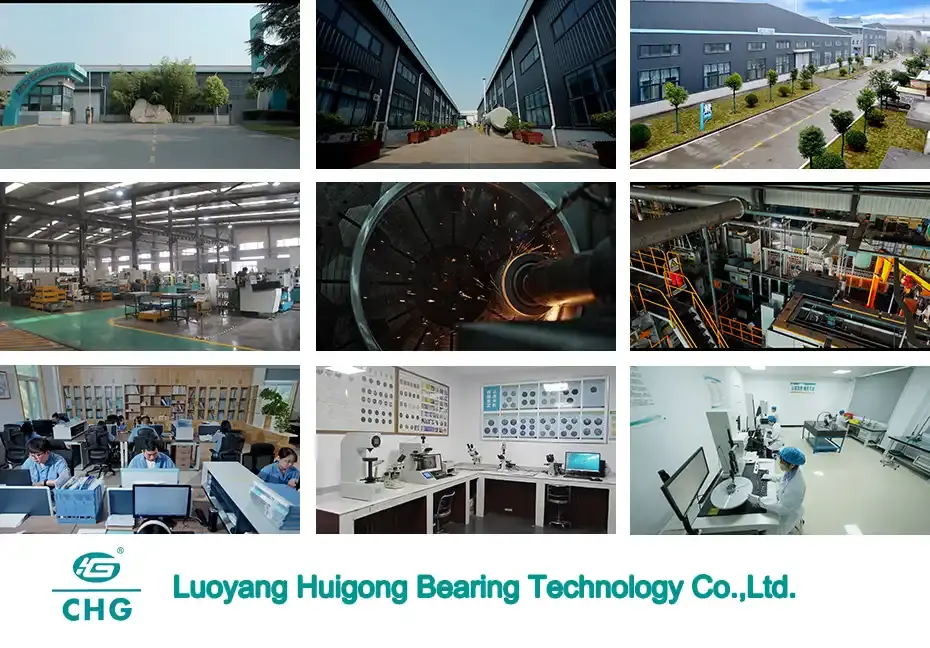

Industry Experience

With over 30 years of experience in the bearing industry, CHG Bearing has established a reputation for quality and reliability. We have partnered with numerous large companies and continue to innovate to meet the evolving demands of the market.

Patents and Certifications

Our commitment to quality is reflected in our extensive portfolio of over 50 invention patents and certifications, including ISO9001 for quality management and ISO14001 for environmental management. These certifications ensure that our products meet the highest standards of performance and reliability.

Feel free to contact us at [sale@chg-bearing.com] for any inquiries or customized solutions.

Technical Specifications

Specification	Details
Type	Four Point Contact Ball Slewing Bearing
Load Capacity	Axial: High; Radial: High; Tilting: Medium
Material	High-strength steel, stainless steel options
Precision Class	P0, P6, P5, P4
Temperature Range	-40°C to +80°C
Certification	ISO9001, ISO14001
Customization	Available based on requirements

Benefits of Four Point Contact Ball Slewing Bearing

Enhanced Load Distribution: Four-point contact design allows for even distribution of loads, reducing wear and extending bearing life.
Smooth Operation: Precision ball arrangement ensures smooth and reliable rotation.
Versatility: Ideal for various industries, including construction, lifting machinery, and more.
Durability: High-quality materials and design contribute to a long service life.

Applications

Construction Machinery: Used in excavators, loaders, bulldozers, and graders for rotational and load-bearing functions.
Lifting Machinery: Essential in tower cranes, gantry cranes, and truck cranes for rotation and stability.
Wind Power Generation: Supports the rotating part of wind turbine cabins for optimal wind energy capture.
Oil Drilling: Withstands high loads from all directions in drilling rigs.
Military Equipment: Provides flexible rotation for tanks and armored vehicles.
Port Terminals: Enhances the efficiency of loading and unloading equipment.
Agricultural Machinery: Improves rotation in harvesters and tractors.
Medical Equipment: Facilitates rotation in devices like MRI machines.
Amusement Facilities: Ensures smooth rotation in carousels and Ferris wheels.
Aerospace: Supports rotation in satellites and rockets.
Material Processing Machinery: Useful in various machinery for accurate processing.

Installation Guide

Preparation: Ensure the installation area is clean and free from debris.
Alignment: Align the bearing with the mounting holes and ensure it is centered.
Mounting: Secure the bearing using appropriate fasteners and torque specifications.
Lubrication: Apply the recommended lubricant to ensure smooth operation.
Testing: Rotate the bearing manually to check for any misalignment or issues.

Maintenance and Care

Regular Inspection: Check for signs of wear, such as noise or vibration.
Lubrication: Keep the bearing properly lubricated according to manufacturer recommendations.
Cleaning: Keep the bearing and surrounding area clean to prevent contamination.
Monitoring: Monitor the performance and address any issues promptly to prevent damage.

FAQ

Q: What industries benefit from for the products?
A: Industries include construction, lifting machinery, wind power, oil drilling, military, ports, agriculture, medical, amusement, aerospace, and more.

Q: How do I choose the right the products?
A: Consider load capacity, precision requirements, material, and operating conditions. Contact us for customized recommendations.

Q: What maintenance is required for these bearings?
A: Regular inspection, lubrication, and cleaning are essential to ensure optimal performance and longevity.

Q: Can CHG Bearing provide custom solutions?
A: Yes, we offer tailored solutions to meet specific requirements and working conditions.

Customer Reviews

“CHG Bearing provided us with the perfect four point contact ball slewing bearings for our construction equipment. Their expertise and customization options made a significant difference in our project’s success.” – John D., Equipment Manager

“The quality and reliability of CHG Bearing’s products are unmatched. We’ve seen consistent performance and durability in our wind turbines.” – Sarah M., Wind Power Engineer

Features
The Single-row Four-point Contact Ball Slewing Bearing consists of two seating rings. It is characterized by compact structure, light weight and four-point contact between the steel balls and the arc raceway. It can bear axial force, radial force and overturning moment simultaneously. It is applicable to the engineering machinery, such as slewing conveyors, welding manipulators, small-and-medium cranes, and excavators.

Note:
1.n1 is the number of oil holes, equally spaced, with oil cup M10×1 JB/T7940.1-TB7940.2
2.The mounting hole n-Φ can be replaced by the threaded hole; the tooth width b can be changed to H-h
3.The tangential force of internal gear is the maximum tangential force; the rating tangential force is half of the maximum tangential force
4.The displacement coefficient of internal tooth follows the design of external teeth.

Bearing Model	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					weight (kg)
	Dmm	dmm	Hmm	D1mm	D2mm	n	mm	dmmm	Lmm	n1	D3mm	d1mm	HImm	hmm	bmm	x	Mmm	Demm	z

013.25.315	408	222	70	372	258	20	18	M16	32	2	316	314	60	10	50	0	5	190	40	49
013.25.355	448	262	70	412	298	20	18	M16	32	2	356	354	60	10	50	0	5	235	49	54
013.25.400	493	307	70	457	343	20	18	M16	32	2	401	399	60	10	50	0	6	276	48	62
013.25.450	543	357	70	507	393	20	18	M16	32	2	451	449	60	10	50	0	6	324	56	71
013.30.500	602	398	80	566	434	20	18	M16	32	4	501	498	70	10	60	0.5	5	367	74	85
014.30.500																	6	368.4	62
013.25.500	602	398	80	566	434	20	18	M16	32	4	501	499	70	10	60	0.5	5	367	74	85
014.25.500																	6	368.4	62
013.30.560	662	458	80	626	494	20	18	M16	32	4	561	558	70	10	60	0.5	5	427	86	95
014.30.560																	6	428.4	72
013.25.560	662	458	80	626	494	20	18	M16	32	4	561	559	70	10	60	0.5	5	427	86	95
014.25.560																	6	428.4	72
013.30.630	732	528	80	696	564	24	18	M16	32	4	631	628	70	10	60	0.5	6	494.4	83	110
014.30.630																	8	491.2	62
013.25.630	732	528	80	696	564	24	18	M16	32	4	631	629	70	10	60	0.5	6	494.4	83	110
014.25.630																	8	491.2	62
013.30.710	812	608	80	776	644	24	18	M16	32	4	711	708	70	10	60	0.5	6	572.4	96	120
014.30.710																	8	571.2	72
013.25.710	812	608	80	776	644	24	18	M16	32	4	711	709	70	10	60	0.5	6	572.4	96	120
014.25.710																	8	571.2	72
013.40.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	0.5	8	635.2	80	220
014.40.800																	10	634	64
013.30.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	0.5	8	635.2	80	220
014.30.800																	10	634	64
013.40.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	80	0.5	8	739.2	93	240
014.40.900																	10	734	74
013.30.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	80	0.5	8	739.2	93	240
014.30.900																	10	734	74
013.40.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	80	0.5	10	824	83	270
014.40.1000																	12	820.8	69
013.30.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	80	0.5	10	824	83	270
014.30.1000																	12	820.8	69
013.40.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	80	0.5	10	944	95	300
014.40.1120																	12	940.8	79
013.30.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	80	0.5	10	944	95	300
014.30.1120																	12	940.8	79
013.45.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1252	1248	100	10	90	0.5	12	1049	88	420
014.45.1250																	14	1042	75
013.35.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1251	1248	100	10	90	0.5	12	1049	88	420
014.35.1250																	14	11042	75

Bearing Model	Dimensions			Mounting Dimensions						Structural Dimension					weight (kg)
Bearing Model	Dmm	dmm	Hmm	D1mm	D2mm	n	mm	dmmm	Lmm	n1	D3mm	d1mm	H1mm	hmm	weight (kg)
010.20.200	280	120	60	248	152	12	16	M14	28	2	201	199	50	10	20
010.20.224	304	144	60	272	176	12	16	M14	28	2	225	223	50	10	22
010.20.250	330	170	60	298	202	18	16	M14	28	2	251	249	50	10	25
010.20.280	360	200	60	328	232	18	16	M14	28	2	281	279	50	10	28
010.25.315	408	222	70	372	258	20	18	M16	32	2	316	314	60	10	44
010.25.355	448	262	70	412	298	20	18	M16	32	2	356	354	60	10	49
010.25.400	493	307	70	457	343	20	18	M16	32	2	401	399	60	10	56
010.25.450	543	357	70	507	393	20	18	M16	32	2	451	449	60	10	62
010.30.500	602	398	80	566	434	20	18	M16	32	4	501	498	70	10	85
01025.500	1602	398	80	566	434	20	18	M16	32	4	501	499	70	10	85
010.30.560	662	458	80	626	494	20	18	M16	32	4	561	558	70	10	95
010.25.560	662	458	80	626	494	20	18	M16	32	4	561	559	70	10	95
010.30.630	732	528	80	696	564	24	18	M16	32	4	631	628	70	10	110
010.25.630	I732	528	80	696	564	24	18	M16	32	4	631	629	70	10	110
010.30.710	812	608	80	776	644	24	18	M16	32	4	711	708	70	10	120
010.25.710	812	608	80	776	644	24	18	M16	32	4	711	709	70	10	120
010.40.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	220
010.30.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	220
010.40.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	240
010.30.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	240
010.40.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	270
010.30.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	270
010.40.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	300
010.30.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	300
010.45.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1252	1248	100	10	420
010.35.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1251	1248	100	10	420
010.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1402	1398	100	10	480
010.35.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1401	1398	100	10	480
011.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1602	1598	100	10	550
010.35.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1601	1598	100	10	550
010.45.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1802	1798	100	10	610
010.35.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1801	1798	100	10	610
010.60.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2002	1998	132	12	1100
010.40.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2001	1998	132	12	1100
010.60.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2242	2238	132	12	1250
010.40.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2241	2238	132	12	1250
010.60.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2502	2498	132	12	1400
010.40.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2501	2498	132	12	1400
010.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	1600
010.40.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	1600
010.75.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	2800
010.50.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	2800
010.75.3550	3776	3322	174	3686	3014	56	45	M42	84	8	3552	3547	162	12	3500
010.50.3550	3776	3322	174	3686	3014	56	45	M42	84	10	3552	3548	162	12	3500
010.75.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3997	162	12	4200
010.50.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3998	162	12	4200
010.75.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4497	162	12	5100
010.50.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4498	162	12	5100

Note:
1.n1 is the number of oil holes, equally spaced, with oil cup M10×1 JB/T7940.1-TB7940.2
2.The mounting hole n-Φ can be replaced by the threaded hole; the tooth width b can be changed to H-h

Bearing Model	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					weight (kg)
	Dmm	dmm	Hmm	D1mm	D2mm	n	omm	dmmm	Lmm	n1	D3mm	d1mm	H1mm	hmm	bmm	x	Mmm	Demm	z
011.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1402	1398	100	10	90	0.5	12	1605.6	131	480
012.45.1400																	14	1607.2	112
011.35.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1401	1398	100	10	90	0.5	12	1605.6	131	480
012.35.1400																	14	1607.2	112
011.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1602	1598	100	10	90	0.5	14	1817.2	127	550
012.45.1600																	16	1820.8	111
011.35.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1601	1598	100	10	90	0.5	14	1817.2	127	550
012.35.1600																	16	1820.8	111
011.45.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1802	1798	100	10	90	0.5	14	2013.2	141	610
012.45.1800																	16	2012.8	123
011.35.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1801	1798	100	10	90	0.5	14	2013.2	141	610
012.35.1800																	16	2012.8	123
011.60.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2002	1998	132	12	120	0.5	16	2268.8	139	1100
012.60.2000																	18	2264.4	123
011.40.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2001	1998	132	12	120	0.5	16	2268.8	139	1100
012.40.2000																	18	2264.4	123
011.60.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2242	2238	132	12	120	0.5	16	2492.8	153	1250
012.60.2240																	18	2498.4	136
011.40.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2241	2238	132	12	120	0.5	16	2492.8	153	1250
012.40.2240																	18	2498.4	136
011.60.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2502	2498	132	12	120	0.5	18	2768.4	151	1400
012.60.2500																	20	2776	136
011.40.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2501	2498	132	12	120	0.5	18	2768.4	151	1400
012.40.2500																	20	2776	136
011.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	120	0.5	18	3074.4	168	1600
012.60.2800																	20	3076	151
011.40.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	120	0.5	18	3074.4	168	1600
012.40.2800																	20	3076	151
011.75.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	150	0.5	20	3476	171	2800
012.75.3150																	22	3471.6	155
011.50.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	150	0.5	20	3476	171	2800
012.50.3150																	22	3471.6	155
011.75.3550	3776	3322	174	3686	3014	56	45	M42	84	8	3552	3547	162	12	150	0.5	20	3876	191	3500
012.75.3550																	22	3889.6	174
011.50.3550	3776	3322	174	3686	3014	56	45	M42	84	10	3552	3548	162	12	150	0.5	20	3876	191	3500
012.50.3550																	22	3889.6	174
011.75.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3997	162	12	150	0.5	22	4329.6	194	4200
012.75.4000																	25	4345	171
011.50.4000	4226	3772	174	4136	3864	60	45	M42	84	10	4002	3998	162	12	150	0.5	22	4329.6	194	4200
012.50.4000																	25	4345	171
011.75.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4497	162	12	150	0.5	22	4835.6	217	5100
012.75.4500																	25	4845	191
011.50.4500	4726	4272	174	4636	4364	60	45	M42	84	10	4502	4498	162	12	150	0.5	22	4835.6	217	5100
012.50.4500																	25	4845	191
