Axial Ball Thrust Bearing

1. Details: The thrust ball bearings are classified into two kinds: unidirectional thrust bearing and bidirectional thrust bearing. The former can bear the axial force in one direction and the latter can bear he axial forces in two directions. Both unidirectional and bidirectional thrust ball bearings cannot bear any radial force. Thrust ball bearing can limit axial displacement of shafts or housings in one or two direction, but not radial displacement. Therefore, the bearings are usally used with deep groove ball bearings.

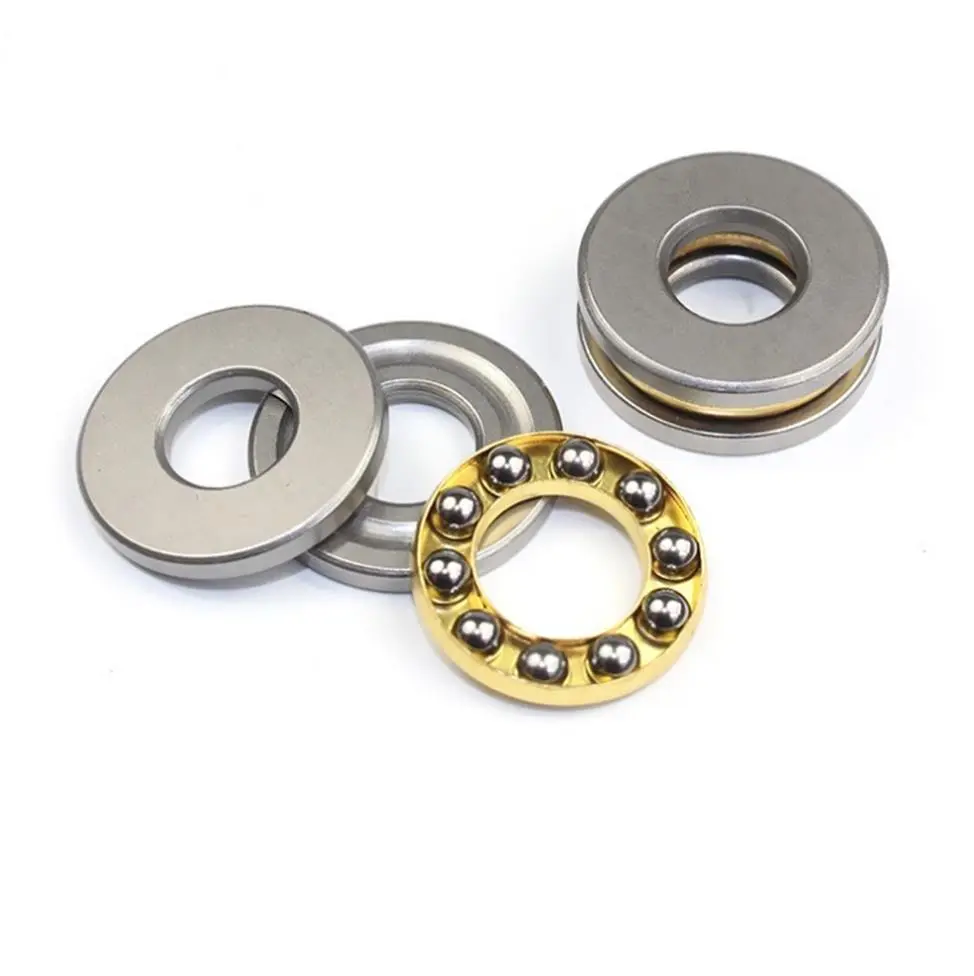

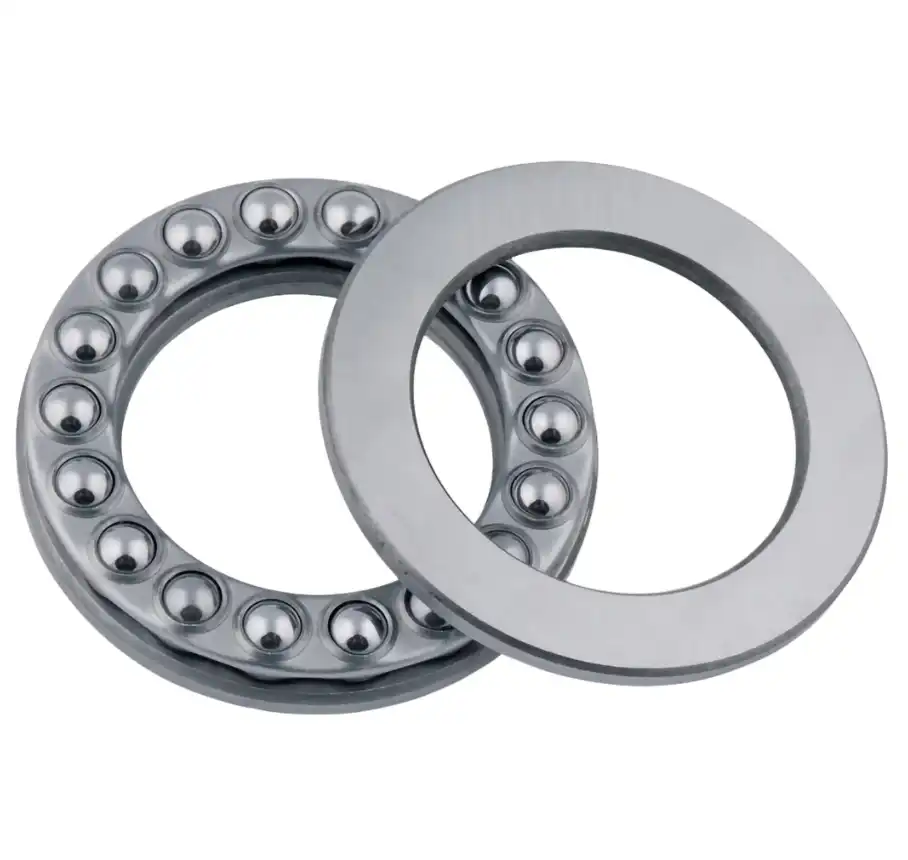

Single direction thrust ball bearing consist of one row of balls ( with cage ), a shaft washer ( close fit with shaft ) and a housing ring ( loose fit with shaft and close fit with bore of bearing block ). They can not carry radial loads but axial loads in one direction, because the axial loads are well distributed on each bal, the loading capacity is higher, but the temperatue is high while working, and their limiting speed is lower.
Double direction angular contact thrust ball bearings are high precision bearings which are specilly designed for spindles of machine toole. They are able to carry axial loads in two directions, and they have more balls with small diameter. The centrifugal influence can be reduced as their 60° contact angle, so more suitable for high speed application.
It can carry axial loads that dimension series 2344 and 2349 double direction angular contact thrust ball bearings fit with dimension series NN30 and NU49 double row cylindrical roller bearings.
Double direction angular contact thrust ball bearings with class SP whose running accuracy is P4 and dimension accuracy is P5 can produced by us.

Send Inquiry Download

What is an Axial Ball Thrust Bearing?

An Axial Ball Thrust Bearing is a specialized type of bearing designed to handle axial loads, which are forces applied along the axis of a shaft. Unlike other bearings that primarily manage radial loads, they are engineered to support high load capacities in one direction, making them ideal for applications where precise axial alignment is crucial. These bearings consist of a series of balls encased in a ring, providing smooth rotation and minimizing friction, which ensures efficient and reliable operation even under heavy loads.

Why Choose CHG Bearing for Axial Ball Thrust Bearings?

At CHG Bearing, we pride ourselves on being a leading manufacturer and supplier of high-quality Axial Ball Thrust Bearings. With over 30 years of industry experience, we have partnered with many large companies across the globe, ensuring that our products meet the highest standards of precision and reliability.

Customization and Solutions: We understand that each application has unique requirements. That's why we offer customization options to tailor our bearings to your specific working conditions. Whether you need different sizes, materials, or lubrication methods, CHG Bearing has the expertise to provide the perfect solution.
Industry-Leading Experience: Our extensive experience in the field, coupled with our cooperation with major industry players, positions us as a trusted partner in the bearing industry.
Certifications and Patents: CHG Bearing holds over 50 invention patents and has achieved ISO9001 quality management system and ISO14001 environmental management system certifications. Our commitment to quality is evident in every product we manufacture.

For more information or to discuss your specific requirements, feel free to contact us at sale@chg-bearing.com.

Technical Specifications

Specification	Details
Bearing Type	Axial Ball Thrust Bearing
Load Capacity	Up to [specific value] N
Outer Diameter	[specific range] mm
Inner Diameter	[specific range] mm
Material	High-grade steel, customizable
Lubrication	Grease/Oil (customizable)
Operating Temperature	-20°C to 120°C (customizable)

Benefits of CHG Axial Ball Thrust Bearings

High Precision: Ensures stable equipment operation, improving overall production quality.
Durability: Designed for long life and wear resistance, perfect for harsh environments like those found in mining and metallurgy.
Cost-Effectiveness: Our bearings offer excellent performance at competitive prices, reducing maintenance costs and increasing efficiency.
Customizable Solutions: Tailored to meet the unique demands of different equipment and working conditions.

Applications of Axial Ball Thrust Bearings

Metallurgy: Supporting large rotating equipment like blast furnaces and rolling mills.
Mining: Essential for jaw crushers, vibrating screens, and other heavy-duty machinery.
Machinery Manufacturing: Used in equipment where precise axial alignment and load support are critical.

Installation Guide

Prepare the Shaft and Housing: Ensure both components are clean, free of debris, and properly aligned.
Apply Lubrication: Use the recommended grease or oil to lubricate the bearing before installation.
Mount the Bearing: Gently press the bearing onto the shaft, ensuring even pressure to avoid damage.
Secure the Bearing: Once in place, secure the bearing with appropriate retaining rings or fasteners.
Test the Installation: Rotate the shaft to check for smooth operation and alignment.

Maintenance and Care

To maximize the lifespan of your Axial Ball Thrust Bearings, regular maintenance is essential:

Lubrication: Reapply lubrication at regular intervals based on the operating conditions.
Inspection: Periodically check for signs of wear or damage, such as unusual noise or vibration.
Replacement: Replace the bearing if it shows significant signs of wear or performance degradation.

FAQ

Q1: What is the typical lifespan of an Axial Ball Thrust Bearing?
A1: The lifespan depends on the operating conditions, but with proper maintenance, they can last several years in heavy-duty applications.

Q2: Can I customize the material and size of the bearing?
A2: Yes, CHG Bearing offers customization options to meet your specific requirements.

Q3: How do I know if my bearing needs to be replaced?
A3: Look for signs like increased noise, vibration, or decreased performance. Regular inspections can help identify issues early.

Q4: What kind of lubrication should I use?
A4: We recommend high-quality grease or oil, depending on the application. Custom lubrication options are available.

Q5: How quickly can I get a replacement bearing?
A5: We offer quick response and delivery services to meet urgent needs. Contact us for specific delivery times.
