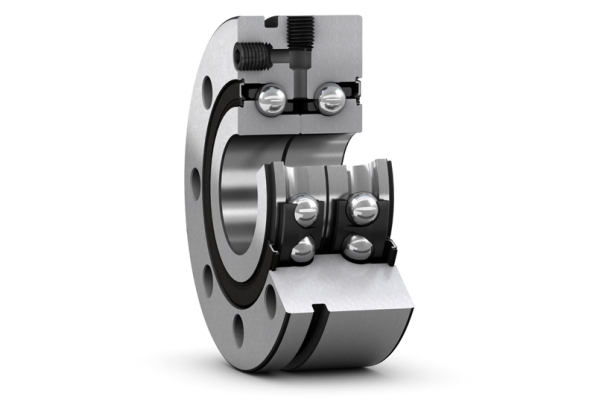

Angular Contact Thrust Ball Bearing

1. Details: The thrust ball bearings are classified into two kinds: unidirectional thrust bearing and bidirectional thrust bearing. The former can bear the axial force in one direction and the latter can bear he axial forces in two directions. Both unidirectional and bidirectional thrust ball bearings cannot bear any radial force. Thrust ball bearing can limit axial displacement of shafts or housings in one or two direction, but not radial displacement. Therefore, the bearings are usally used with deep groove ball bearings.
Single direction thrust ball bearing consist of one row of balls ( with cage ), a shaft washer ( close fit with shaft ) and a housing ring ( loose fit with shaft and close fit with bore of bearing block ). They can not carry radial loads but axial loads in one direction, because the axial loads are well distributed on each bal, the loading capacity is higher, but the temperatue is high while working, and their limiting speed is lower.
Double direction angular contact thrust ball bearings are high precision bearings which are specilly designed for spindles of machine toole. They are able to carry axial loads in two directions, and they have more balls with small diameter. The centrifugal influence can be reduced as their 60° contact angle, so more suitable for high speed application.
It can carry axial loads that dimension series 2344 and 2349 double direction angular contact thrust ball bearings fit with dimension series NN30 and NU49 double row cylindrical roller bearings.
Double direction angular contact thrust ball bearings with class SP whose running accuracy is P4 and dimension accuracy is P5 can produced by us.

Send Inquiry Download

What is an Angular Contact Thrust Ball Bearing?

Angular Contact Thrust Ball Bearings are specialized bearings designed to handle high axial loads in one direction. Unlike standard ball bearings, these bearings can sustain both axial and radial loads, making them ideal for applications where the load direction varies or where a combination of forces is present. In industries like metallurgy and mining, where heavy machinery operates under extreme conditions, the precision and durability of this bearing are crucial.

CHG Bearing: Your Trusted Partner in Angular Contact Thrust Ball Bearings

At CHG Bearing, we specialize in manufacturing and supplying high-quality Angular Contact Thrust Ball Bearings tailored to meet the demands of your industry. With over 30 years of experience, we understand the unique challenges you face. Our bearings are designed to offer superior performance, durability, and precision, ensuring your equipment operates smoothly and efficiently.

Why Choose CHG Bearing?

Customization for Various Conditions: We offer customized solutions to meet specific working conditions, ensuring that our bearings perform optimally in your machinery.
Proven Experience: With three decades of industry experience and partnerships with large companies, we bring a wealth of knowledge to every project.
Innovative and Certified: CHG Bearing holds over 50 invention patents and is ISO9001 and ISO14001 certified, guaranteeing that our products meet the highest standards of quality and environmental management.

For more information, feel free to contact us at sale@chg-bearing.com.

Technical Specifications

Specification	Details
Bearing Type	Angular Contact Thrust Ball Bearing
Material	High-quality steel/alloy
Load Capacity	Up to 20,000 N
Precision Level	P5, P4, P2
Operating Temperature	-20°C to 150°C
Lubrication	Grease, Oil
Customization	Available upon request

Benefits of Angular Contact Thrust Ball Bearings

High Load Capacity: Capable of handling heavy axial and radial loads simultaneously, making them ideal for demanding applications.
Durability: Engineered to withstand harsh conditions, including high temperatures, humidity, and heavy loads, reducing maintenance frequency.
Precision: High precision levels ensure smooth operation and minimal vibration, which is essential for maintaining the quality of your products.
Customization: Our bearings can be tailored to meet your specific needs, from size and material to lubrication methods.

Applications

Angular Contact Thrust Ball Bearings are widely used in industries where precision and reliability are paramount. Common applications include:

Metallurgical Equipment: Rolling mills, blast furnaces, and steelmaking machinery rely on these bearings for smooth and efficient operation.
Mining Machinery: Jaw crushers, impact crushers, and vibrating screens benefit from the high load capacity and durability of our bearings.
Industrial Gearboxes: These bearings ensure the smooth transfer of power in heavy machinery, reducing downtime and maintenance costs.
Pumps and Compressors: High precision and load-bearing capacity make these bearings ideal for use in pumps and compressors.

Installation Guide

Proper installation is crucial for maximizing the performance and lifespan of your Angular Contact Thrust Ball Bearings. Follow these steps for optimal results:

Preparation: Ensure that the bearing and housing are clean and free from contaminants.
Alignment: Carefully align the bearing with the shaft and housing, ensuring that it is seated properly.
Lubrication: Apply the appropriate lubricant before installation to reduce friction and wear.
Mounting: Use the correct tools and techniques to mount the bearing without damaging it.
Check: After installation, check for smooth rotation and ensure that there are no abnormal noises or vibrations.

Maintenance and Care

Regular maintenance is essential to keep your bearings in top condition. Here are some tips:

Lubrication: Regularly check and replenish lubricant levels to prevent friction and wear.
Inspection: Periodically inspect bearings for signs of wear, such as unusual noises, vibrations, or increased operating temperatures.
Cleaning: Keep the bearings clean and free from contaminants that could cause premature wear.
Replacement: Replace bearings that show signs of excessive wear or damage to prevent equipment failure.

FAQ

Q: Can these Bearings handle radial loads?
A: Yes, they are designed to handle both axial and radial loads, making them versatile for various applications.

Q: What materials are used in these bearings?
A: Our bearings are made from high-quality steel or alloy, designed to withstand harsh operating conditions.

Q: How often should I lubricate my bearings?
A: The frequency of lubrication depends on the operating environment. In harsh conditions, more frequent lubrication may be necessary.

Q: Can I customize the bearings for specific applications?
A: Absolutely. We offer customized solutions to meet your specific requirements, including size, material, and lubrication.

Q: How long do Angular Contact Thrust Ball Bearings last?
A: With proper maintenance, our bearings are designed to have a long service life, even in demanding environments.
